Diffusion Bonding

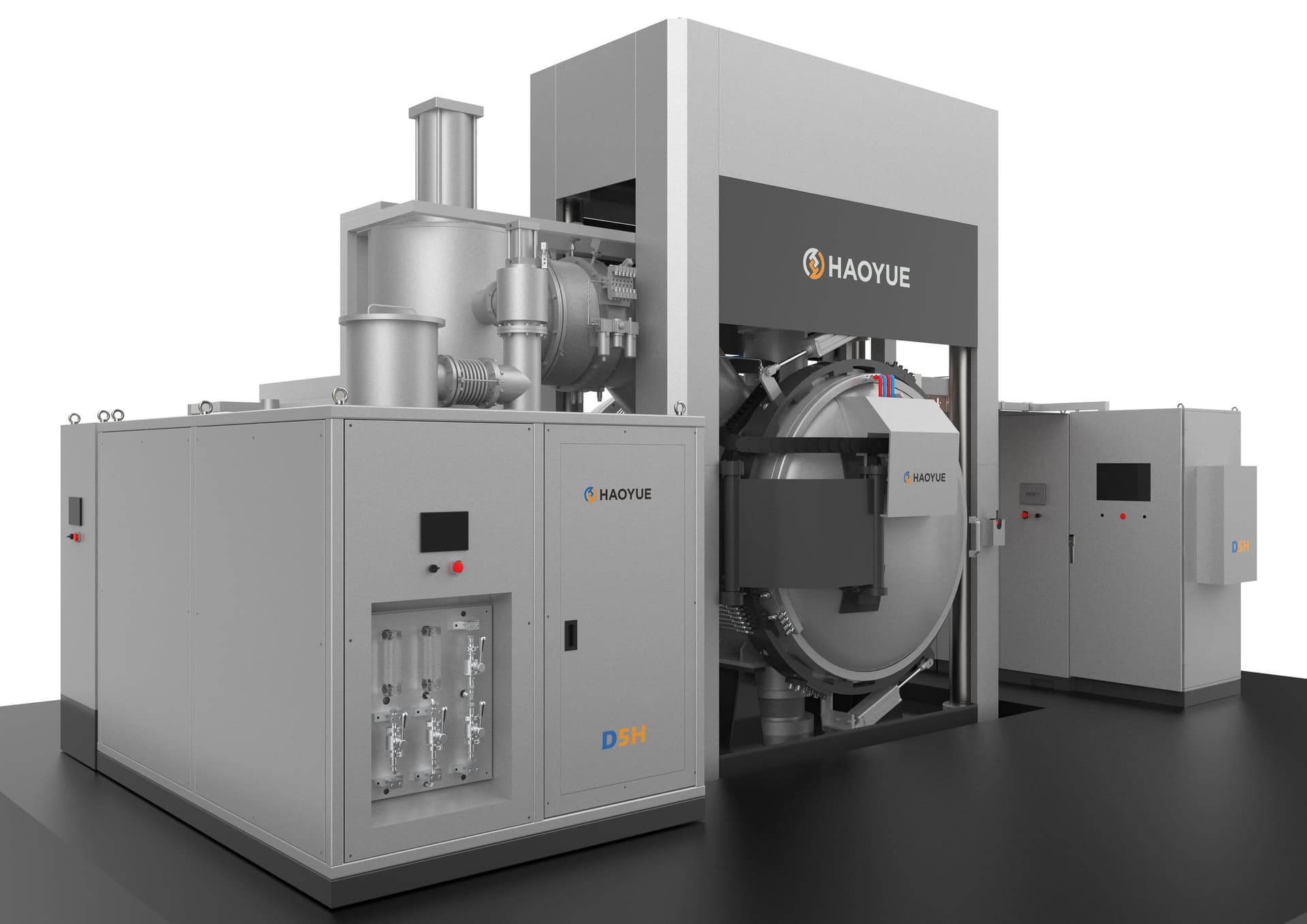

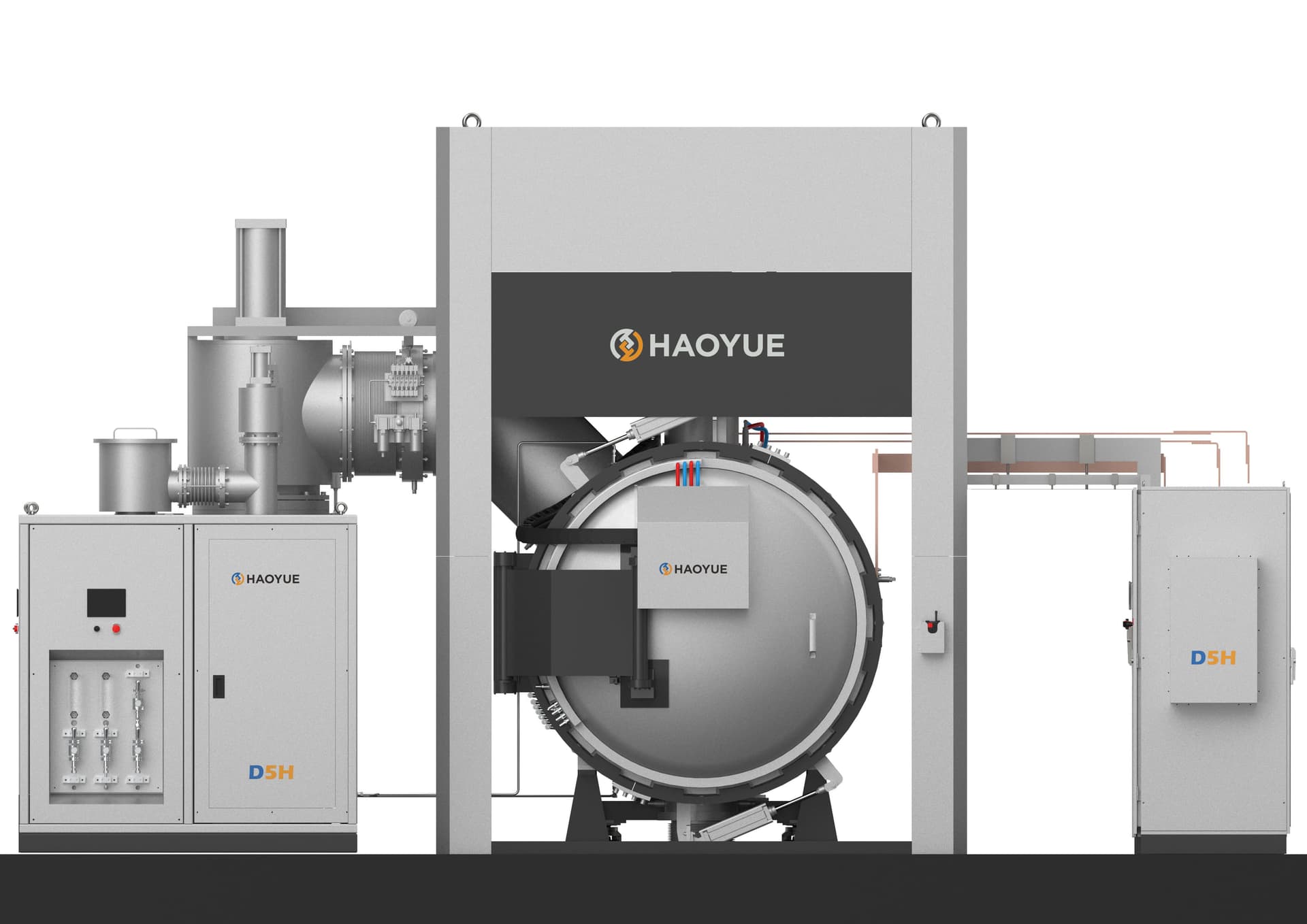

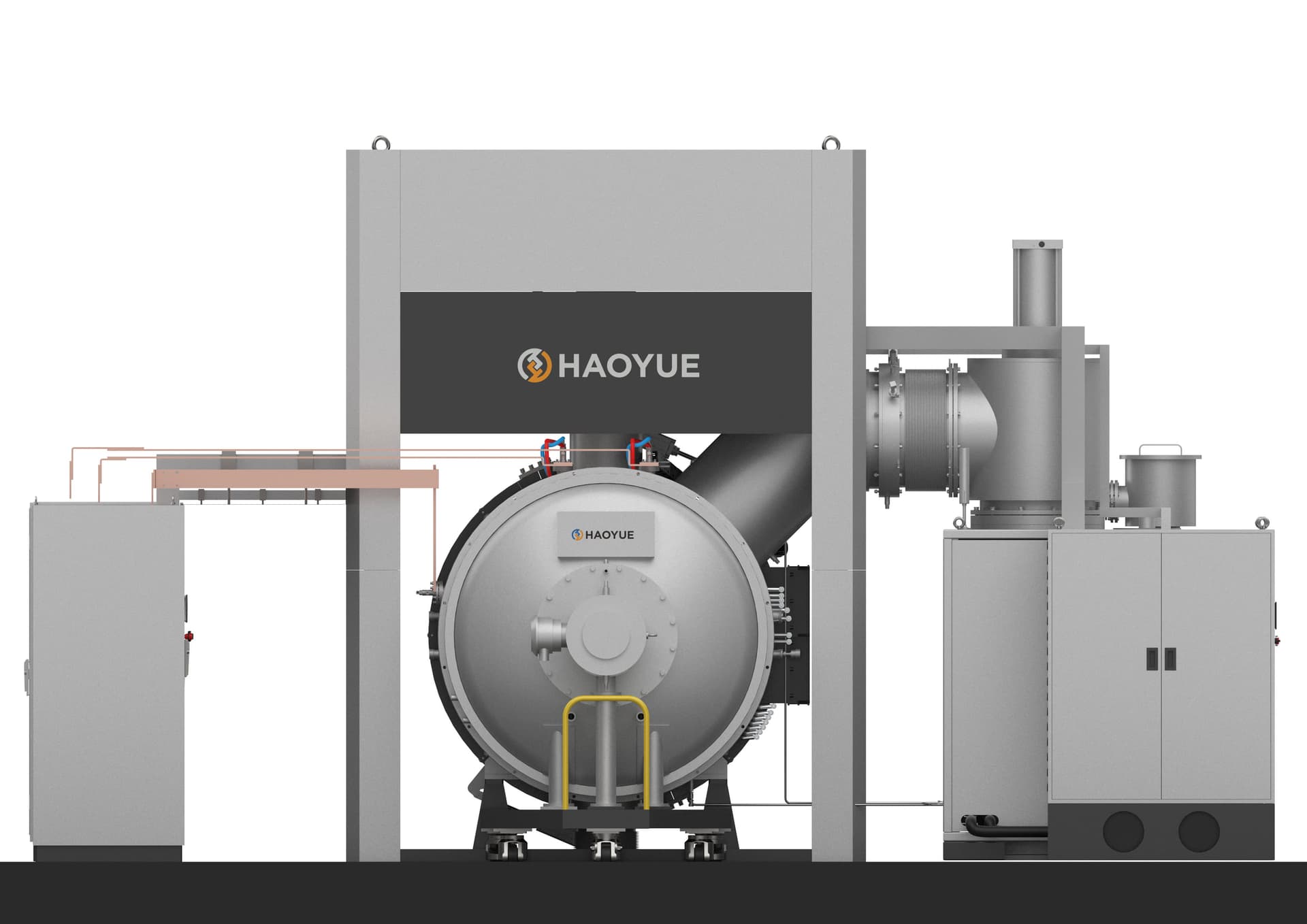

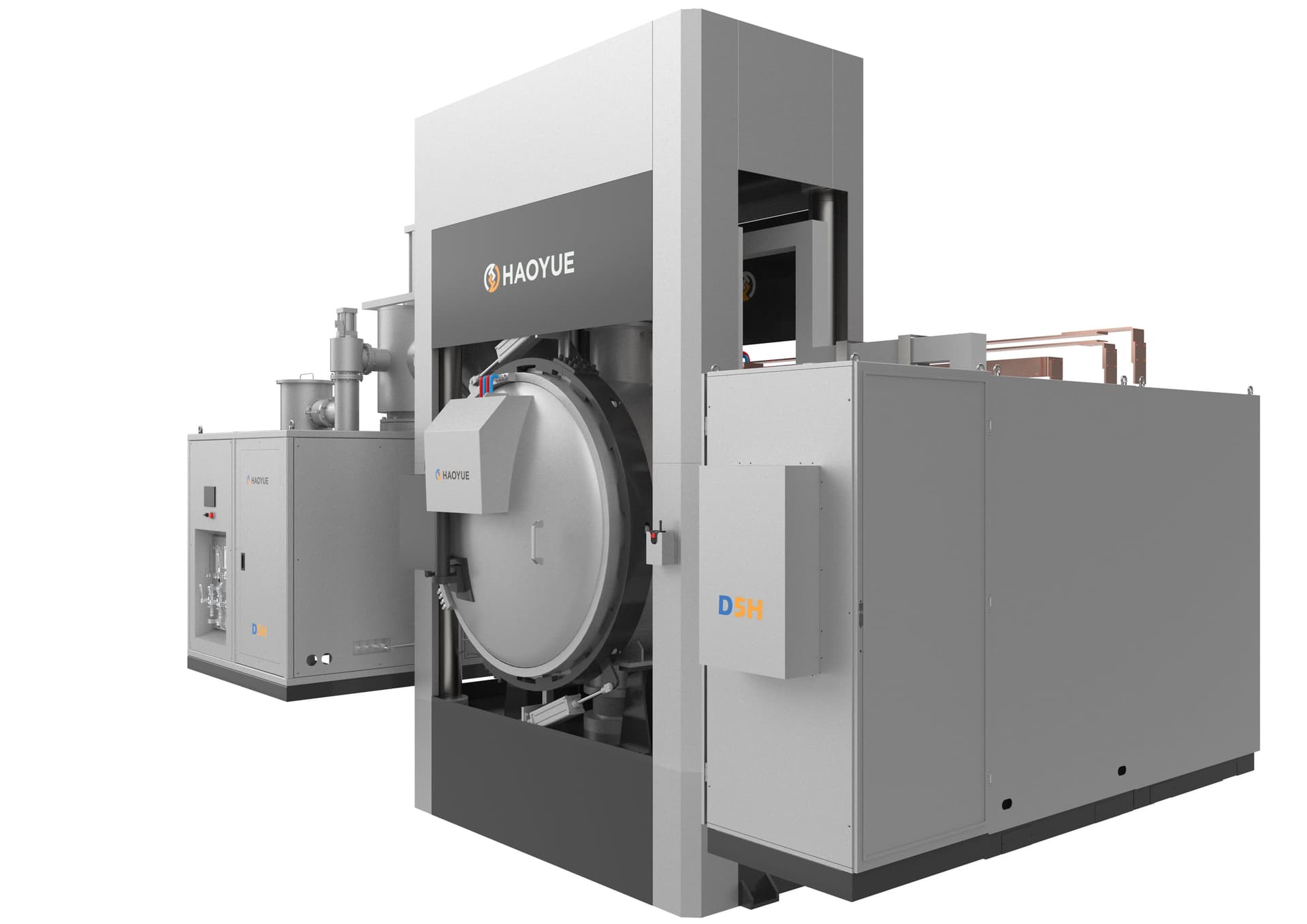

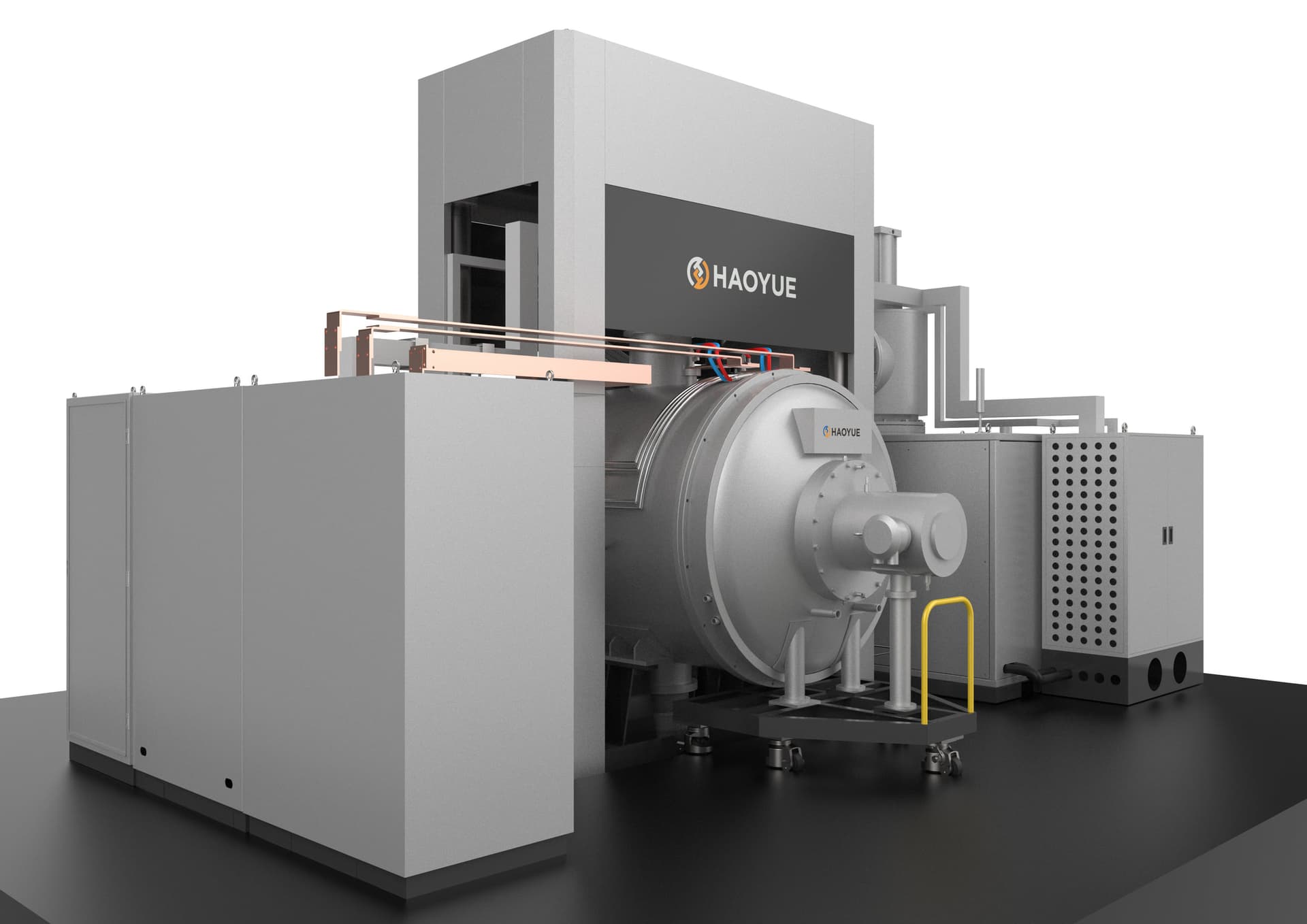

D series Vacuum Diffusion Welding Furnace

Name: D series Vacuum Diffusion Welding Furnace
Brand: Haoyue

Vacuum diffusion bonding furnace for precision solid-state joining projects.

Good Temperature Uniformity / Fast Heating Speed / High Pressure Accuracy /Good Safety Performance / Fast Cooling Speed Difusion welding refers to a solid-state... Exact limits for temperature, atmosphere, pressure or load, and work-zone size are confirmed in technical review; Haoyue quotes from the agreed process window. Exact limits for temperature, atmosphere, pressure or load, and work-zone size are confirmed in technical review; Haoyue quotes from the agreed process window.

Inquire About This Product Compare This Model Back To Series Brochure

Key Features

Technical Highlights

Haoyue vacuum diffusion bonding furnace is used for high-temperature diffusion welding and bonding of metals, alloys and advanced material assemblies under vacuum.

Configuration is reviewed against material, temperature, atmosphere, and work-zone inputs.

Controls, records, and acceptance checks are scoped during technical proposal.

Utilities, fixtures, and safety interfaces are confirmed before quotation.

Haoyue supports documentation aligned to the agreed process window.

Process Flow

Diffusion Bonding Process Overview

Vacuum diffusion bonding joins mating surfaces through atomic diffusion under heat and sustained pressure, without a melting interface.

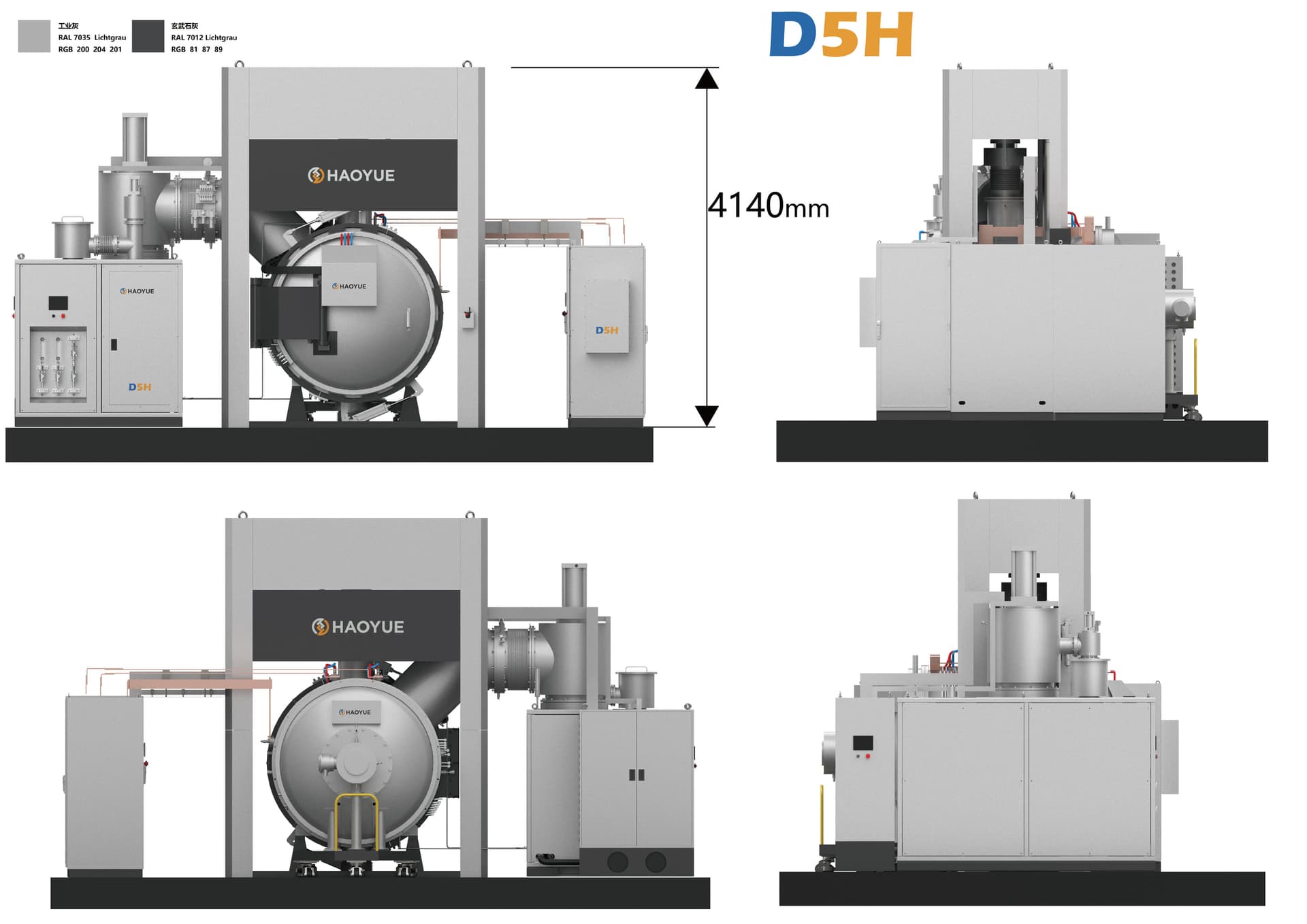

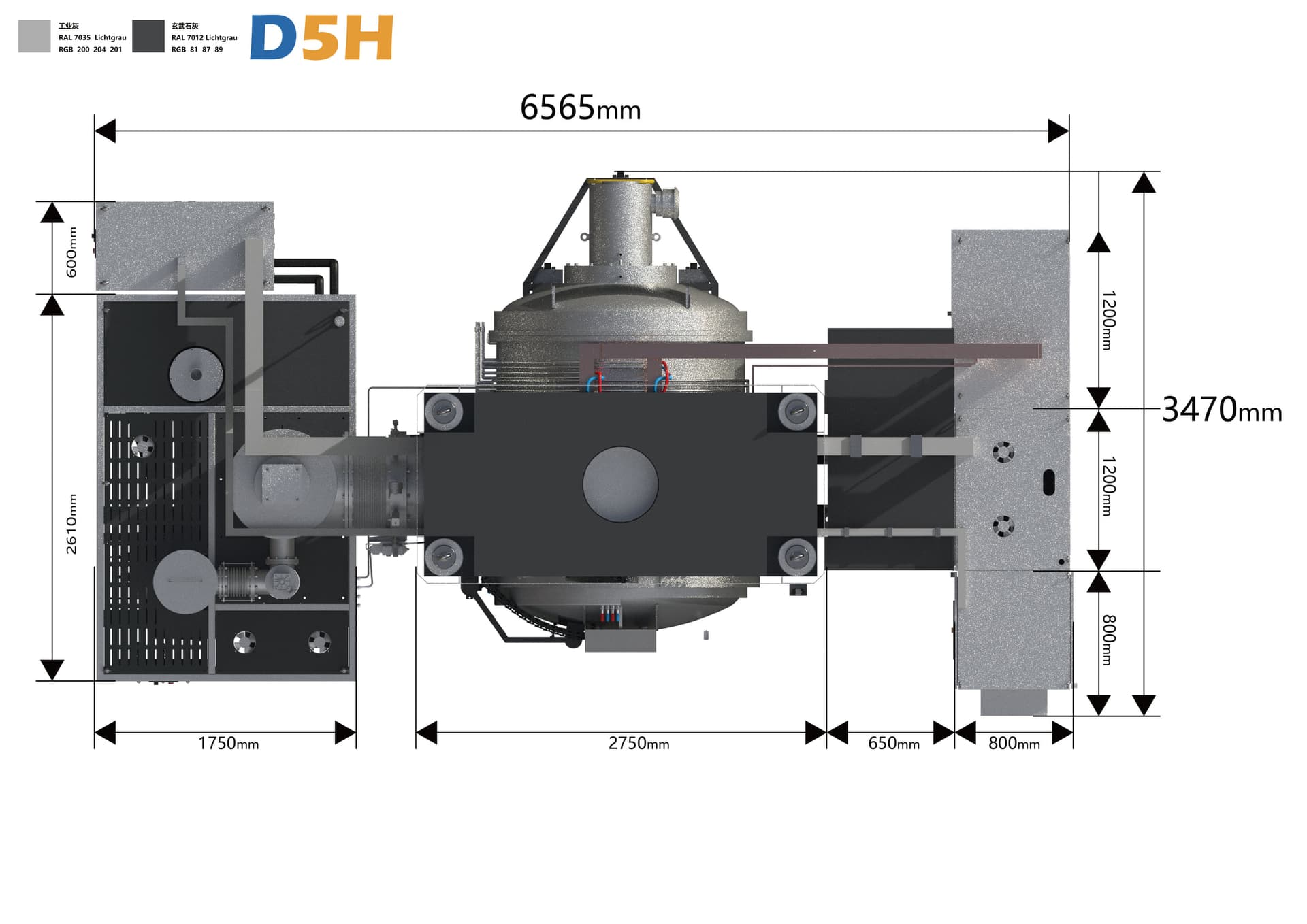

D5H joint-specific review

Turn furnace capacity into a joint and inspection acceptance plan.

Use this product page for the D5H equipment configuration. The final proposal should be tied to the material pair, complete joint stack, tooling, load distribution, thermal-vacuum records, and inspection route.

Open Diffusion Bonding Buyer Guide Plan Inspection And Acceptance Send Acceptance Brief

Joint and stack definition

Provide material grades, plate or channel drawings, bonding area, stack height, surface route, flatness, protected passages, and fixture envelope.

Load and thermal field

Confirm platen or ram arrangement, tooling stiffness, alignment, temperature measurement, pressure or load trace, dwell, and controlled cooling.

Vacuum and records

Define the vacuum and cleanliness requirement, measurement points, leak-rate method, data channels, report format, and retained process records.

Inspection and handover

Assign witness samples, dimensional or leak checks, joint validation, factory test, documentation, installation, training, and site acceptance responsibilities.

Technical selection guide

Plan the process before comparing D series Vacuum Diffusion Welding Furnace options.

Review joint materials, pressure, vacuum, tooling, inspection, and quotation inputs before selecting a configuration.

Open Vacuum Diffusion Bonding Furnace Guide->

Lifecycle support

Plan support alongside the equipment configuration.

Coordinate site interfaces, safety checks, documentation, and acceptance planning around the selected furnace scope.

Installation And Commissioning Support->

Selection guide

Confirm the process window before quotation.

For faster engineering review, prepare the core process boundaries before sending an inquiry.

Target temperature and working atmosphere

Sample, mold, or workpiece dimensions

Pressure, load, or gas-pressure requirements

Expected batch capacity and automation level

Can the chamber be customized?

Yes. Chamber size, heating zone, fixture, pressure, and atmosphere configuration should be confirmed through technical review.

Is a process test recommended?

For new materials or demanding density targets, a sample process discussion helps reduce equipment selection risk.

What should be sent with an inquiry?

Material, target temperature, pressure or load, atmosphere, workpiece size, and expected capacity are the most useful inputs.

Typical Applications

Heat exchange assembliesPrecision joiningLaminated metal stacksAerospace structures

Review similar furnace options.

Open Product Finder ->

Diffusion Bonding

D2 Vacuum Diffusion Welding Furnace

Diffusion welding refers to a solid-state welding method in which workpieces are pressed under high temperature without visible deformation or relative movement. This process is particularly suitable for joining dissimilar metal materials, heat-resistant alloys, ceramics, intermetallic compounds, composite materials, and other new materials. Especially for materials that are difficult to weld using fusion welding methods, diffusion welding has obvious advantages.
