When is GPS preferred over HIP?
When the ceramic route is built around gas overpressure sintering and the part/fixture plan fits that chamber style. HIP remains the review path when isotropic high pressure is the dominant need.
Gas pressure sintering
G Series gas pressure furnaces for advanced ceramic sintering.
Use the G Series when silicon nitride, carbide, or structural ceramic parts need controlled high-temperature gas pressure sintering.
G-SERIES
Process window
What this family is built to control.
01
Gas pressure control
02
Advanced ceramic sintering
03
Safety interlocks
04
Vertical and horizontal layouts
Process definition
What this family is for.
The G Series supports gas pressure sintering for advanced ceramics that need high-temperature densification with controlled overpressure. Pressure steps, atmosphere handling, hot-zone layout, and batch pattern are reviewed as one safety-aware configuration.
Laboratory gas-pressure systems support process definition; larger vertical or horizontal platforms are reviewed when batch weight and production rhythm increase. Pressure and temperature limits stay project matched.
Selection boundary
When to choose this family.
- Choose gas pressure sintering for ceramics that need overpressure densification rather than uniaxial die load.
- Compare with HIP when isotropic high pressure and different part geometries dominate the requirement.
- Confirm gas handling, safety, and utilities early — they are first-order inputs, not afterthoughts.
- Size vertical vs horizontal layouts from load pattern and plant constraints.
Inquiry inputs
What to prepare before quotation.
- 01Ceramic composition and target density or property
- 02Temperature and pressure-temperature cycle
- 03Gas type, purity, handling, and safety boundaries
- 04Work-zone size, fixtures, and batch plan
- 05Acceptance records and installation region
FAQ
Questions buyers ask before model comparison.
What safety topics must be in the brief?
Gas species, maximum pressure, monitoring, interlocks, room utilities, and responsibility splits for installation and operation.
Which page should buyers open first?
Start with the gas pressure sintering selection hub, then the matching product or G-series model page, then the technical review form.
Next useful pages
Hubs, guides, and review paths.
Equipment gallery
Models in this process family.

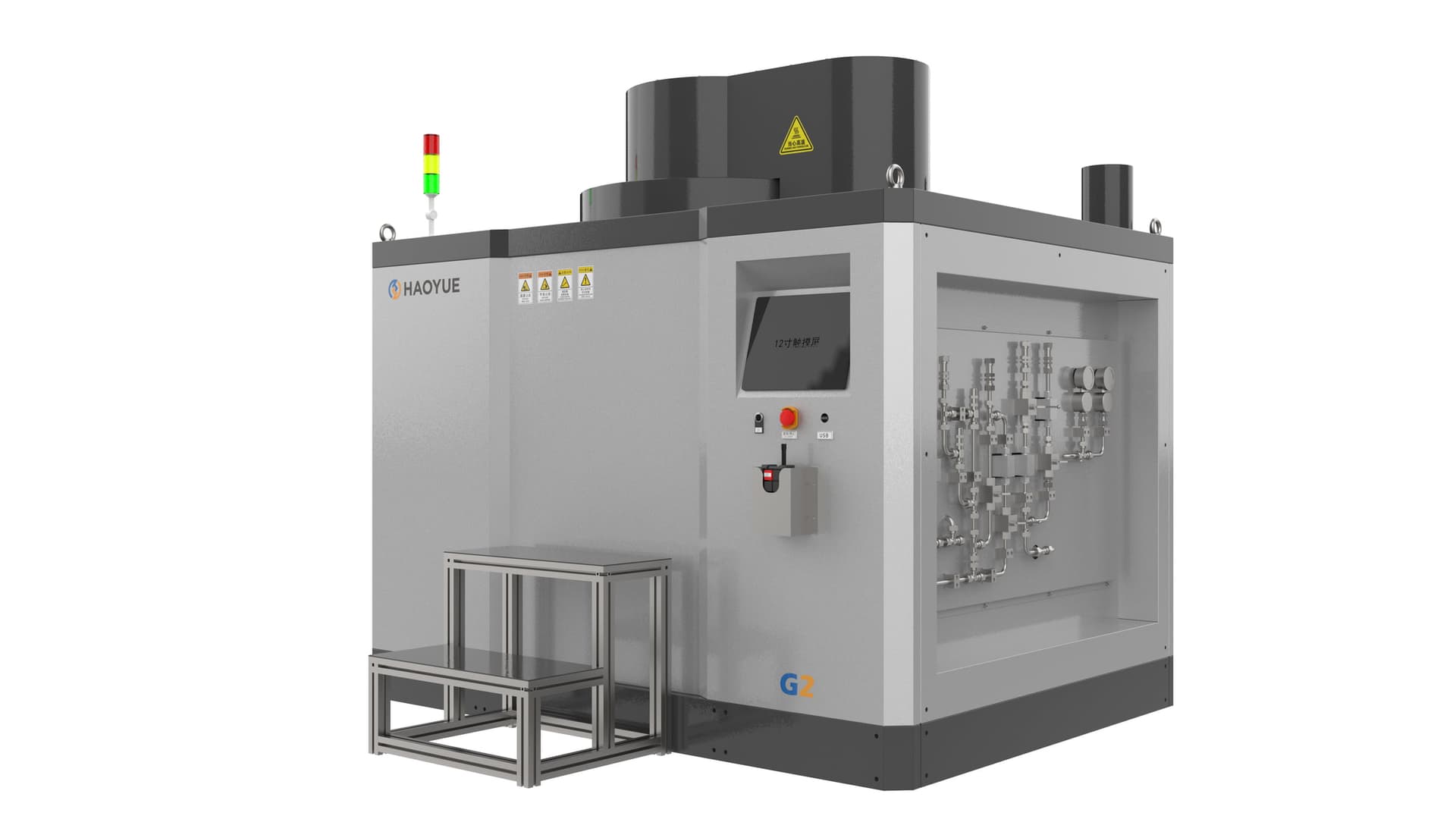

G2 Pressure Sintering Furnace
Open model ↗

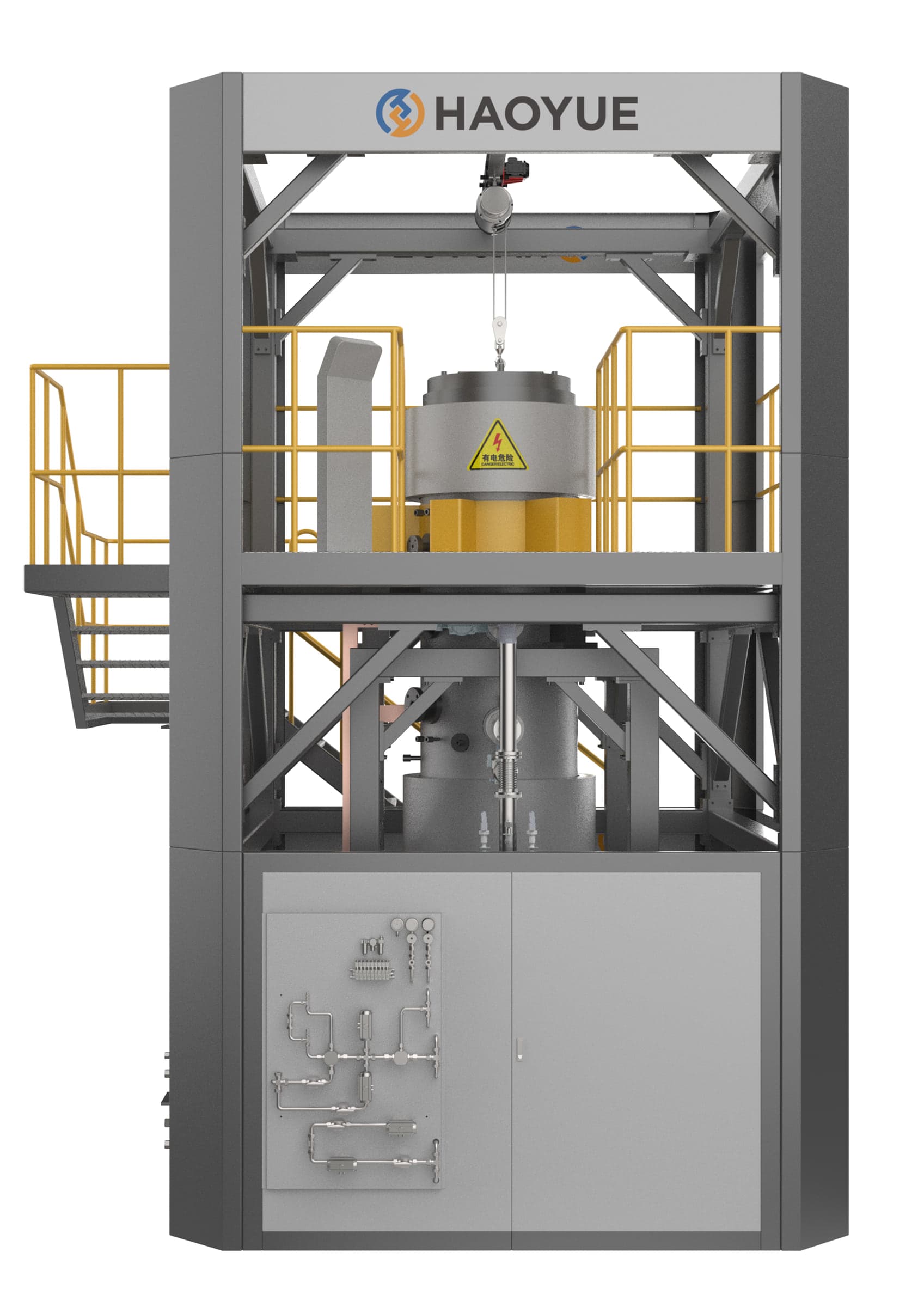

Gas Pressure Sintering Furnace
Open model ↗

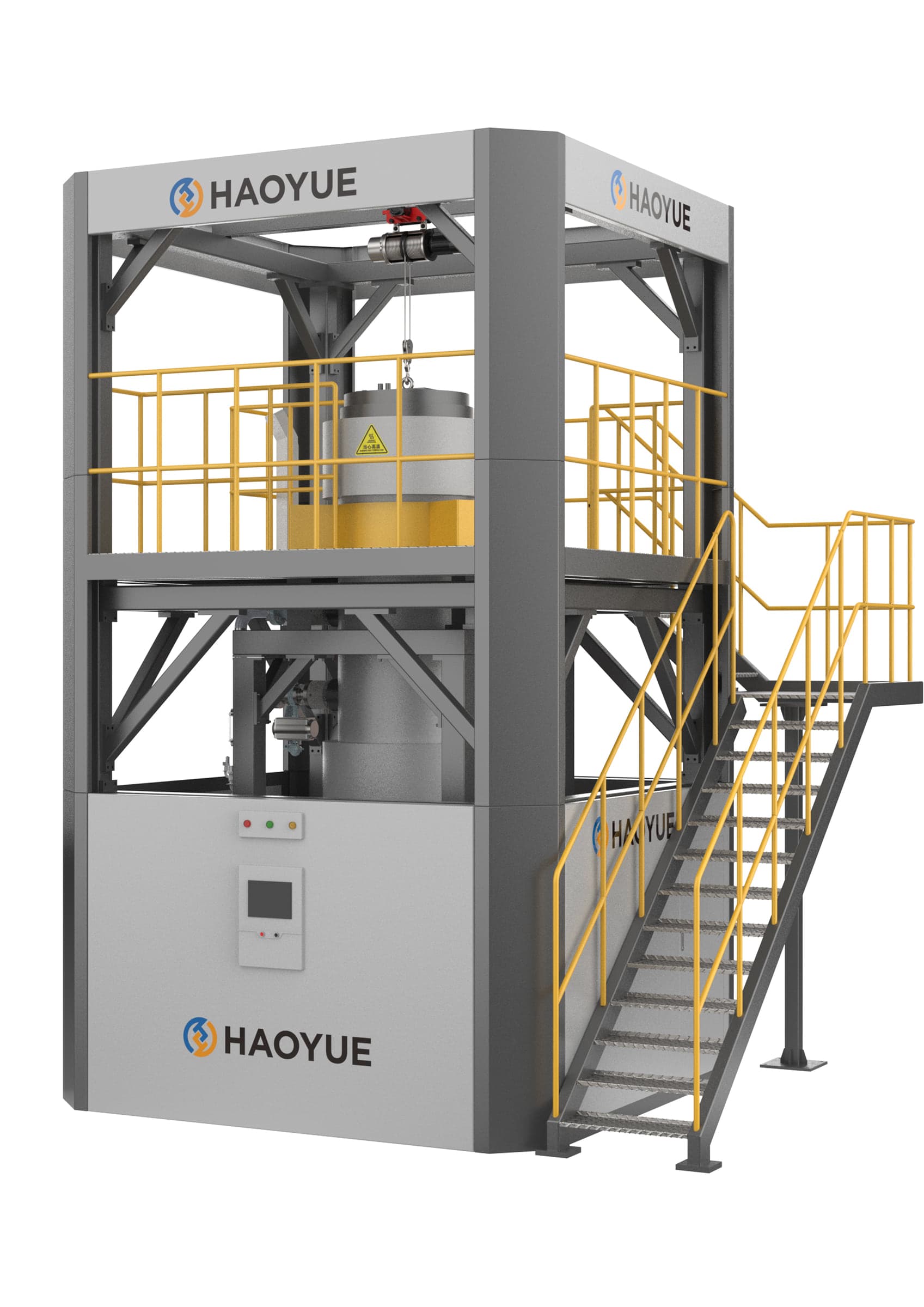

G series Gas pressure Horizontal type Sintering Furnace
Open model ↗

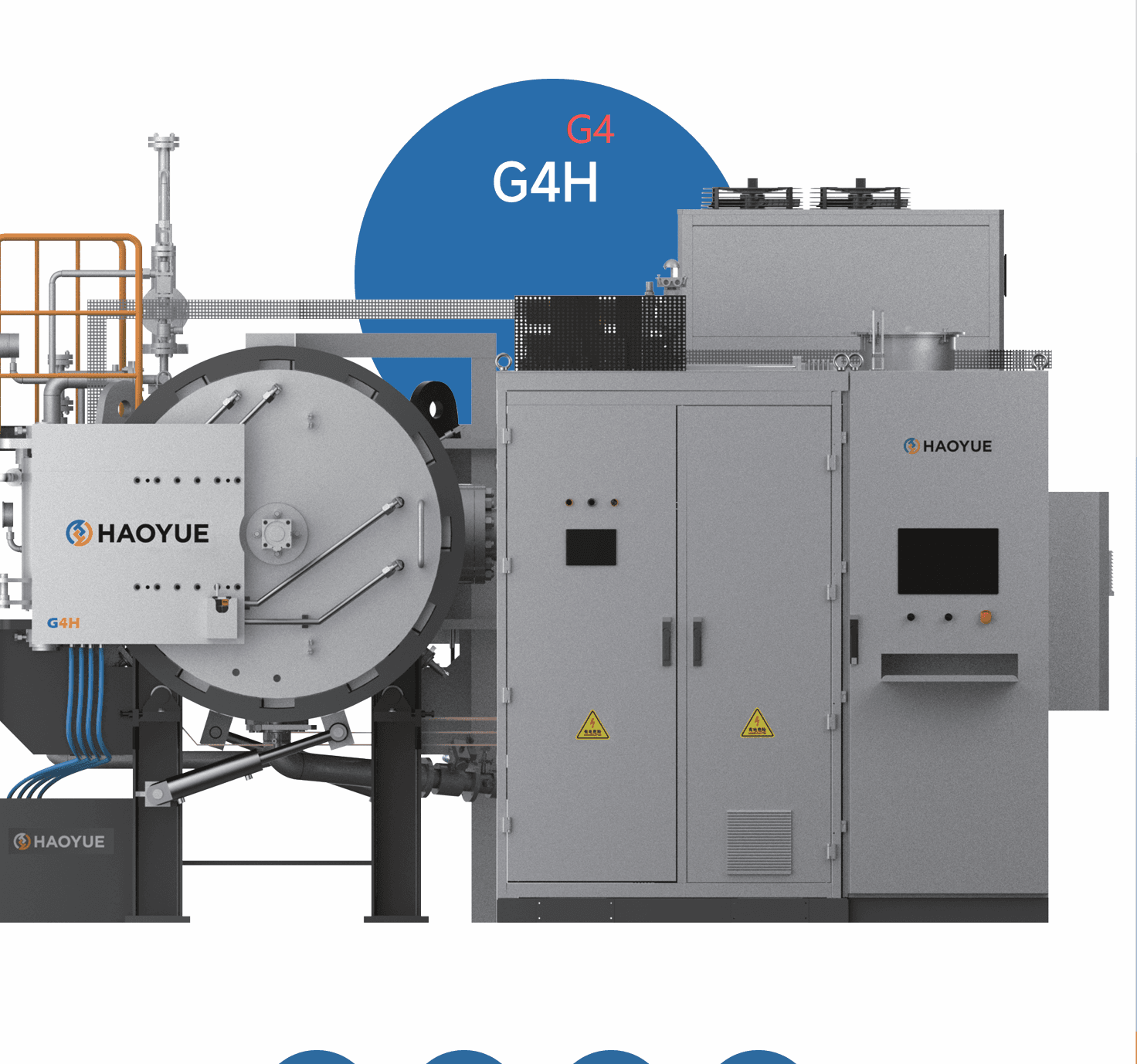

G series Vertical Gas Pressure Furnace
Open model ↗

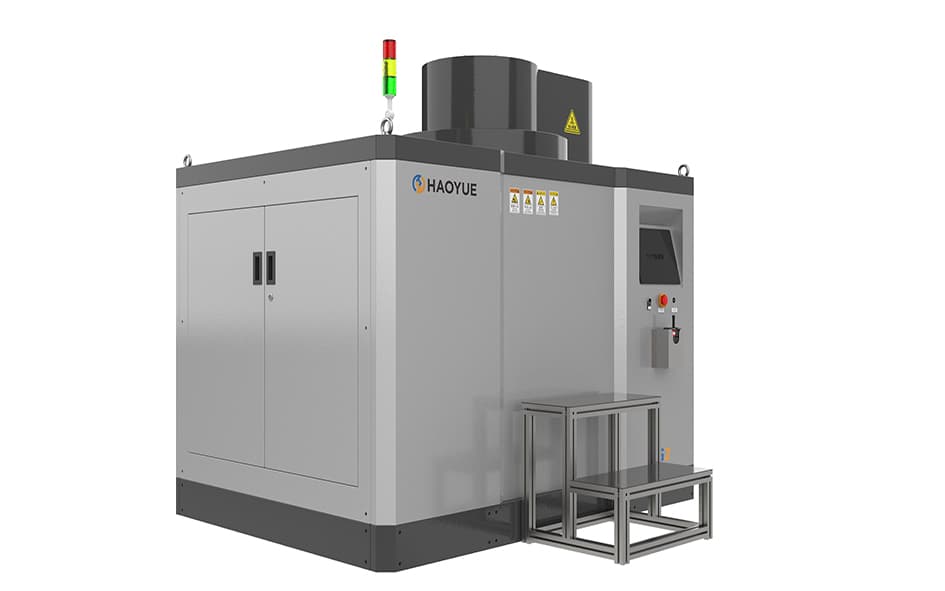

G Series Gas Pressure Sintering Furnace
Open model ↗
G3 Gas pressure Vertical Sintering Furnace
Open model ↗Suitable materials
silicon nitridesilicon carbideceramic toolsstructural ceramics
Typical applications
Gas pressure sinteringCeramic ballsCutting toolsStructural ceramics
Models and scale-up
Start small. Configure for the stage you are in.
| Model | Scale | Temperature | Pressure / load | Atmosphere | Best for | |
|---|---|---|---|---|---|---|
| G2 | Lab / pilot | Up to 2000 C | 0-9.8 MPa | Ar / N2 | Silicon nitride and ceramic trials | View model -> |
| G4 | Pilot / production | High temperature | Project pressure range | Ar / N2 | Vertical gas pressure sintering | View model -> |
| G5 | Production | High temperature | Project pressure range | Ar / N2 | Horizontal industrial batches | View model -> |
Next step
Bring the material and target. We will review the route.
Guides for this process
HIP Furnace vs Gas Pressure Sintering Furnace
Understand when to use HIP and when to use gas pressure sintering for dense structural materials, silicon nitride, and advanced ceramic projects.
Gas Pressure Sintering For Silicon Nitride Ceramics
Review the process variables buyers should prepare when selecting a gas pressure sintering furnace for silicon nitride ceramic parts.
