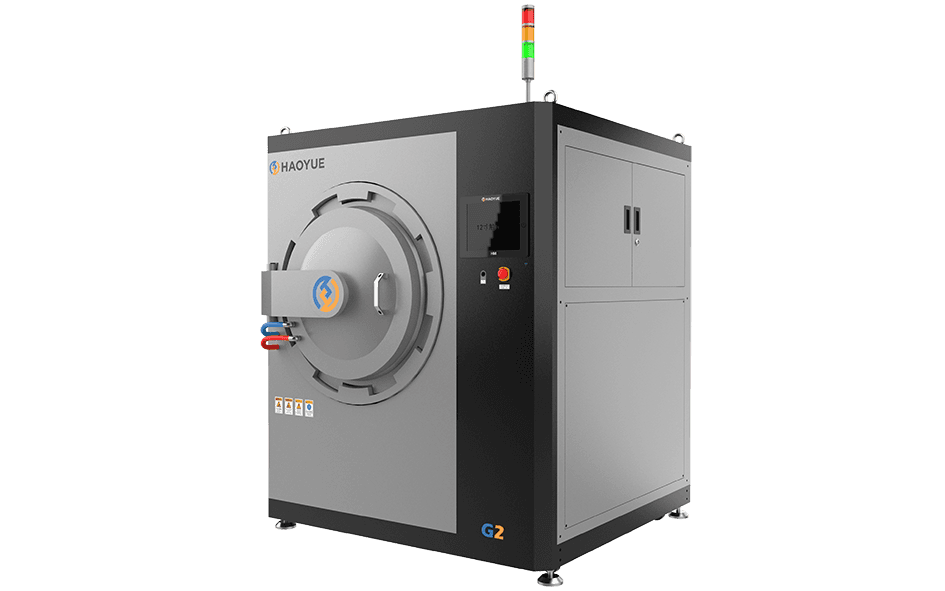

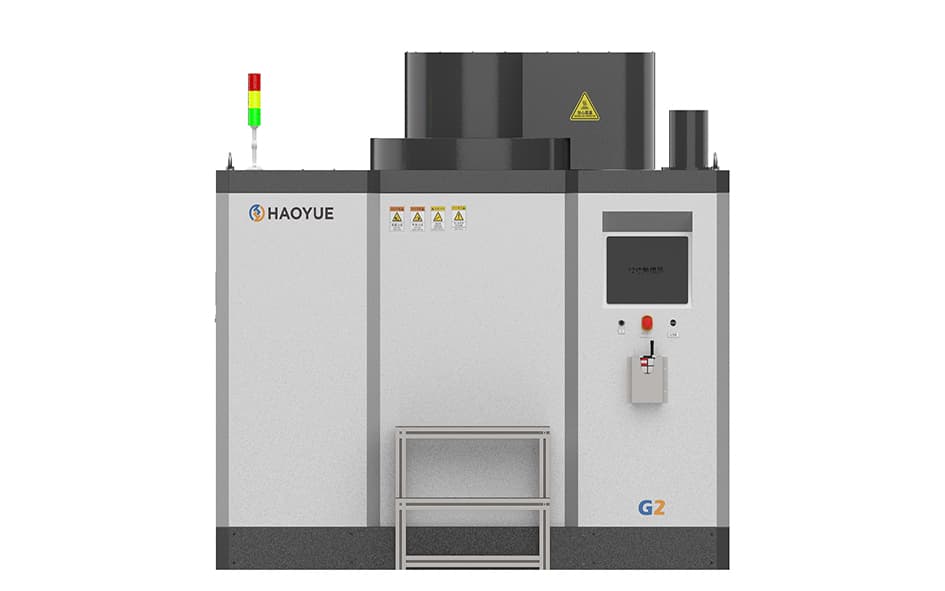

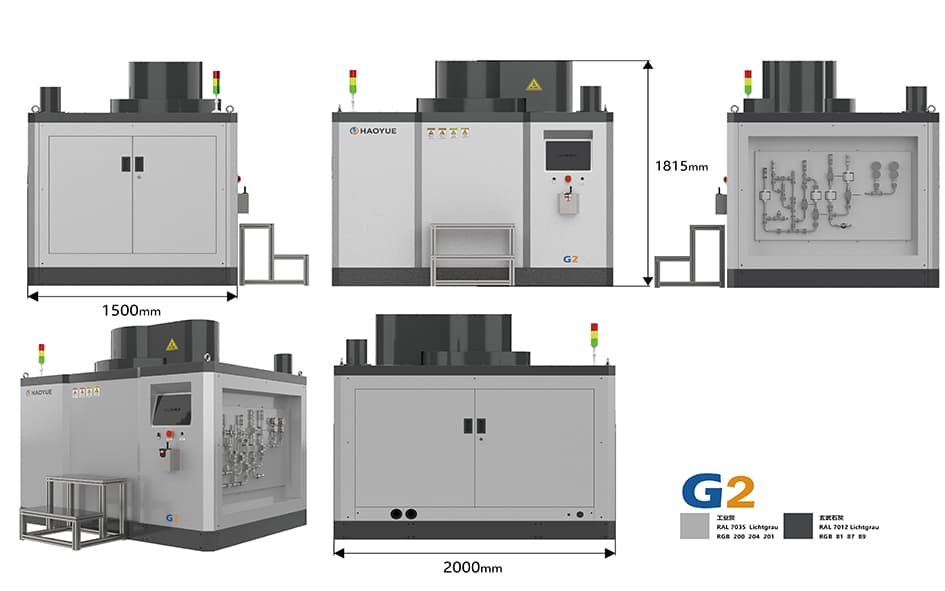

G Series Gas Pressure Sintering Furnace
Gas Pressure process platform from the Haoyue legacy catalogue.
Add.: Building B2, 7301 Jiasong North Road, Jiading District, Shanghai
Key Features
Technical Highlights
Add.: Building B2, 7301 Jiasong North Road, Jiading District, Shanghai
Copyright © Shanghai Haoyue Technology Co.,Ltd. All Rights Reserved
Process Flow
Gas Pressure Process Overview
Gas pressure sintering follows vacuum or partial-pressure sintering with a high-pressure inert gas stage that closes residual porosity.
Technical selection guide
Plan the process before comparing G Series Gas Pressure Sintering Furnace options.
Review ceramic composition, pressure-temperature window, gas handling, loading, and safety requirements before comparing models.
Lifecycle support
Plan support alongside the equipment configuration.
Prepare operating records, inspection inputs, planned downtime, and technical questions for a service review.
Selection guide
Confirm the process window before quotation.
For faster engineering review, prepare the core process boundaries before sending an inquiry.
Can the chamber be customized?
Yes. Chamber size, heating zone, fixture, pressure, and atmosphere configuration should be confirmed through technical review.
Is a process test recommended?
For new materials or demanding density targets, a sample process discussion helps reduce equipment selection risk.
What should be sent with an inquiry?
Material, target temperature, pressure or load, atmosphere, workpiece size, and expected capacity are the most useful inputs.
Official Specification Tables
Imported from Haoyue's official product data and reorganized for clearer technical review.
| Numbering | Heater | Chamber Size(mm) | Operating Temperature (°C) | Heating Power (Kw) | Ultimate Vaccum (Pa) | Application | Note |
|---|---|---|---|---|---|---|---|
| G2VGR20 | GR | φ200×H250 | 2000 | 50 | 10 | Gas pressure Sintering/Partial pressure/Degreasing | Vertical, 10MPa Gas pressure |
| G2HGR20 | GR | W200×H200×D300 | 2000 | 50 | 6.7*10 -3 | Gas pressure Sintering/Vacuum Sintering/Degreasing | Horizontal, 1MPa Gas pressure, Vacuum Integrated Furnace , 30Tons Hydraulic pressure |
Typical Applications
Related products
Review similar furnace options.
Gas Pressure
G2 Pressure Sintering Furnace
Integrates positive pressure dewaxing, vacuum dewaxing, vacuum sintering, partial pressure sintering, pressure sintering, atmosphere control, and cooling for high-pressure nitrogen or argon sintering.
Gas Pressure
Gas Pressure Sintering Furnace
Supports pressure atmosphere sintering for materials that require controlled gas pressure and stable thermal processing.
Gas Pressure
G series Gas pressure Horizontal type Sintering Furnace
Haoyue gas pressure sintering furnaces provide high-temperature pressure sintering for silicon nitride, ceramics and advanced materials requiring stable atmosphere control. Exact limits for temperature, atmosphere, pressure or load, and work-zone size are confirmed in technical review; Haoyue quotes from the agreed process window. Exact limits for temperature, atmosphere, pressure or load, and work-zone size are confirmed in technical review; Haoyue quotes from the agreed process window.
Gallery And Media
Review product images, equipment details, and available media before sending a technical inquiry.
Technical Downloads
Use these documents to prepare a technical proposal request with material, atmosphere, temperature, pressure, and chamber details.
Gas Pressure Sintering Questionnaire
Requirement checklist for ceramic sintering projects, including gas type, pressure range, temperature, and safety configuration.
