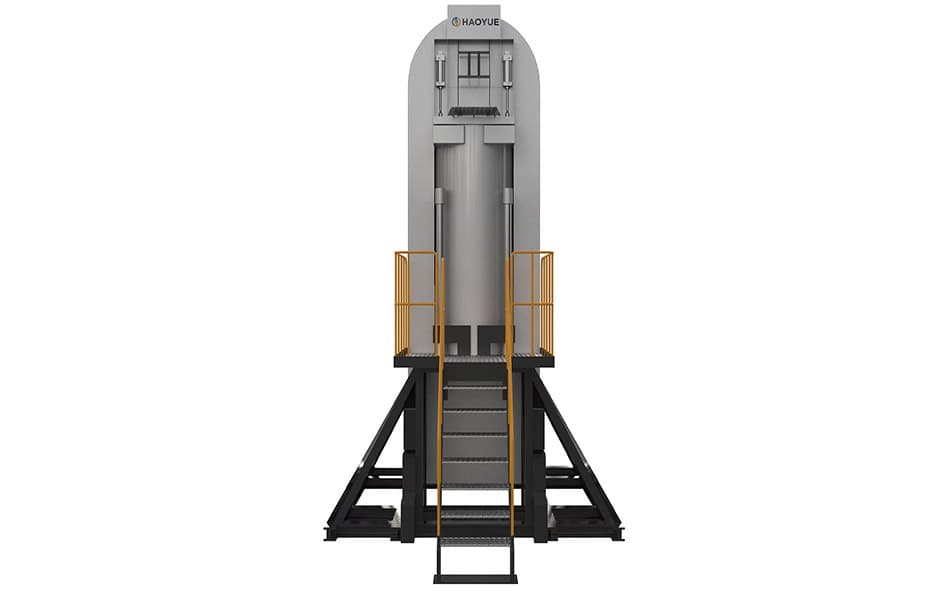

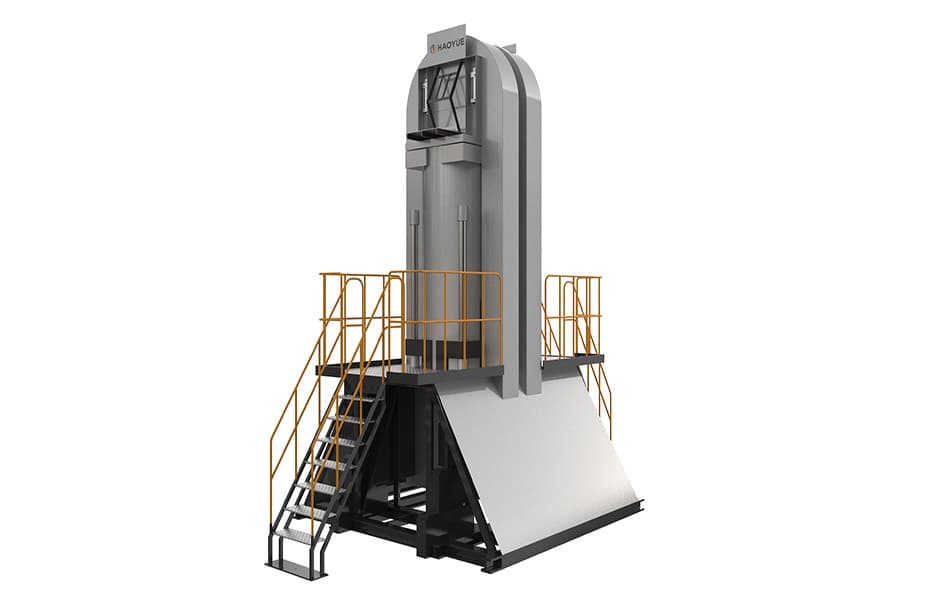

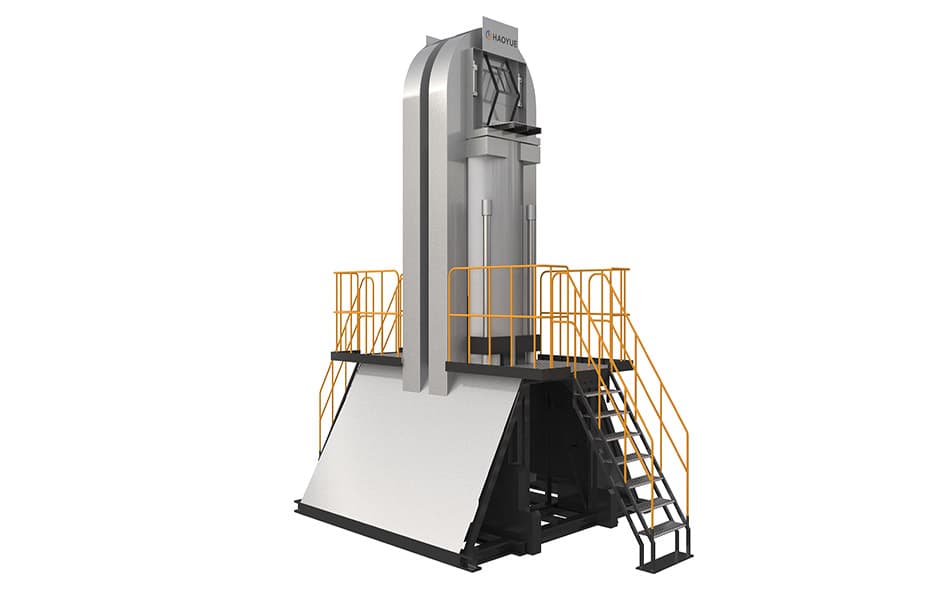

I3 Hot Isostatic Press HIP
HIP process platform from the Haoyue legacy catalogue.
Add.: Building B2, 7301 Jiasong North Road, Jiading District, Shanghai
Key Features
Technical Highlights
Add.: Building B2, 7301 Jiasong North Road, Jiading District, Shanghai
Copyright © Shanghai Haoyue Technology Co.,Ltd. All Rights Reserved
Process Flow
HIP Process Overview
Hot isostatic pressing uses simultaneous heat and isostatic gas pressure to eliminate internal porosity and achieve near-full density.
Lifecycle support
Plan support alongside the equipment configuration.
Organize equipment records, technical questions, operating procedures, and handover materials around the project scope.
Selection guide
Confirm the process window before quotation.
For faster engineering review, prepare the core process boundaries before sending an inquiry.
Can the chamber be customized?
Yes. Chamber size, heating zone, fixture, pressure, and atmosphere configuration should be confirmed through technical review.
Is a process test recommended?
For new materials or demanding density targets, a sample process discussion helps reduce equipment selection risk.
What should be sent with an inquiry?
Material, target temperature, pressure or load, atmosphere, workpiece size, and expected capacity are the most useful inputs.
Official Specification Tables
Imported from Haoyue's official product data and reorganized for clearer technical review.
| Product number | Furnace size (mm) | Gas pressure (MPa) | Heating material | Heating power (kw) | Vacuum degree(Pa) | Max. temperature (°C) |
|---|---|---|---|---|---|---|
| I3CC20 | Φ 350x700 | 100/150/200 | C/C | 200 | 10 | 2000 |
| 13MO14 | Φ 350x700 | 100/150/200 | MO | 200 | 10 | 1400 |
Typical Applications
Related products
Review similar furnace options.
HIP
I1 HIP Furnace
I1 is available as an I Series HIP furnace detail page with product media and technical inquiry support for configuration review.
HIP
I2 HIP Furnace
I2 is available as an I Series HIP furnace detail page with product media and technical inquiry support for configuration review.
HIP
I3 HIP Furnace
I3 is available as an I Series HIP furnace detail page with product media and technical inquiry support for configuration review.
Gallery And Media
Review product images, equipment details, and available media before sending a technical inquiry.
Technical Downloads
Use these documents to prepare a technical proposal request with material, atmosphere, temperature, pressure, and chamber details.
HIP Furnace Requirement Sheet
Technical intake sheet for hot isostatic pressing projects, including material, pressure, chamber size, and batch expectations.
Request Technical Proposal
