Hot Pressing

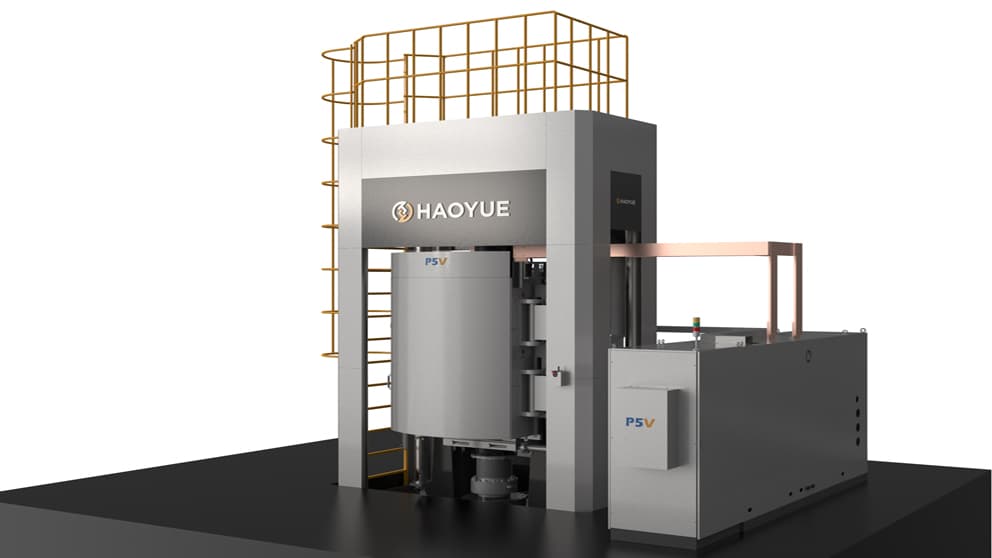

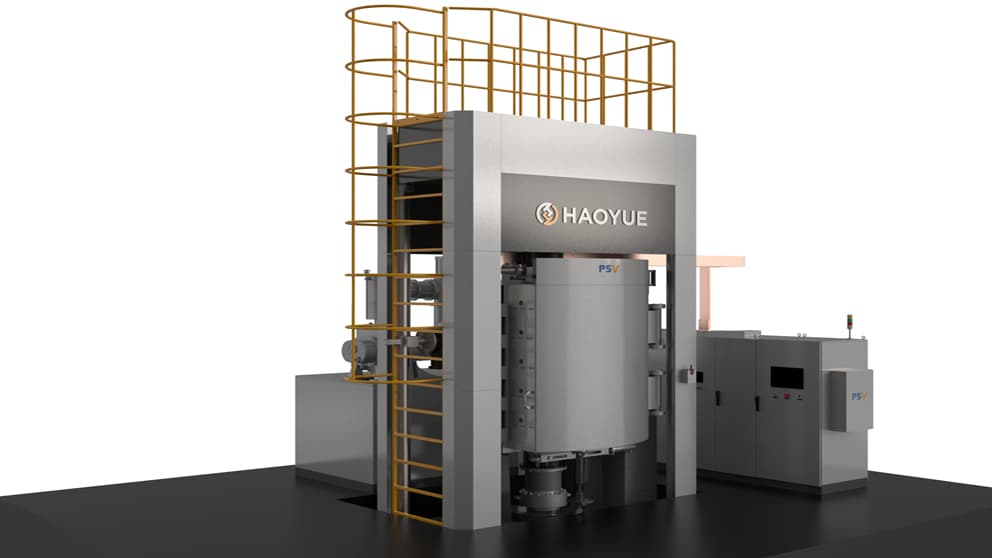

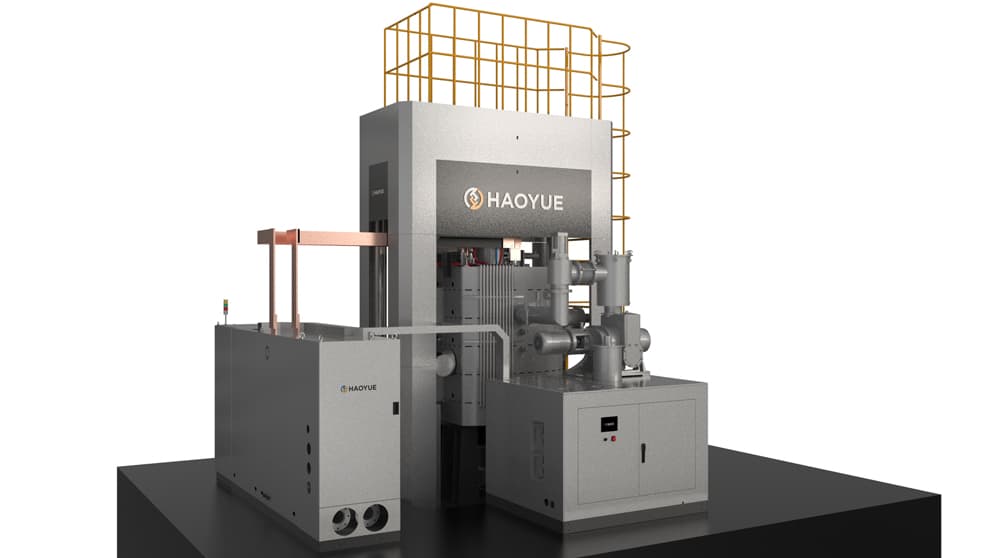

P5V Vacuum Hot-pressing Furnace(Graphite)
Hot Pressing process platform from the Haoyue legacy catalogue.
Add.: Building B2, 7301 Jiasong North Road, Jiading District, Shanghai
Key Features
Technical Highlights
Add.: Building B2, 7301 Jiasong North Road, Jiading District, Shanghai
Copyright © Shanghai Haoyue Technology Co.,Ltd. All Rights Reserved
Process Flow
Hot Pressing Process Overview
Vacuum hot pressing combines heating and mechanical pressure in a single cycle to densify powder into a solid, high-density part.
Technical selection guide
Plan the process before comparing P5V Vacuum Hot-pressing Furnace(Graphite) options.
Review die geometry, load path, temperature, atmosphere, and trial requirements before selecting a hot pressing furnace.
Lifecycle support
Plan support alongside the equipment configuration.
Prepare operating records, inspection inputs, planned downtime, and technical questions for a service review.
Selection guide
Confirm the process window before quotation.
For faster engineering review, prepare the core process boundaries before sending an inquiry.
Can the chamber be customized?
Yes. Chamber size, heating zone, fixture, pressure, and atmosphere configuration should be confirmed through technical review.
Is a process test recommended?
For new materials or demanding density targets, a sample process discussion helps reduce equipment selection risk.
What should be sent with an inquiry?
Material, target temperature, pressure or load, atmosphere, workpiece size, and expected capacity are the most useful inputs.
Official Specification Tables
Imported from Haoyue's official product data and reorganized for clearer technical review.
| Tech specifications / Models | P5V (Standard Edition) | P5V Plus (Standard Plus) | P5V Pro (high-end version) | P5V Pro Max (high-end enlarged version) |
|---|---|---|---|---|
| Diameter of metal indenter | 300mm | 360mm | 300mm | 360mm |
| Diameter of graphite indenter | 300mm | 360mm | 300mm | 360mm |
| Maximum product diameter | ≤Φ300 (raw material) | ≤Φ360 (raw material) | ≤Φ300 (raw material) | ≤Φ360 (raw material) |
| Product height range | 100≤H≤300mm | 100≤H≤300mm | 100≤H≤300mm | 100≤H≤300mm |
| Maximum pressure | 300 tons | 400 tons | 300 tons | 400 tons |
| Way of Pressure | Bidirectional pressurization | Bidirectional pressurization | Bidirectional pressurization | Bidirectional pressurization |
| Stroke | 200mm+200mm | 200mm+200mm | 200mm+200mm | 200mm+200mm |
| Pressure head opening height | 700mm | 700mm | 700mm | 700mm |
| Outline dimensions of the mold sleeve | Φ500x500mm | Φ520x500mm | Φ500x500mm | Φ520x500mm |
| Product dimensions (DWH) |
| No. | Chamber Size (mm) | Sample Dia.(mm) | Pressure (KN) | Stroke(mm) | Ultimate Vacuum(Pa) | Operation Temperature (°C) | Max. Dia. of Mold (mm) |
|---|---|---|---|---|---|---|---|
| P5VGR22 | φ500*H700 | ≤300 | ≤ 3000 | 400 | 5 | 2200 | ≤500 |
| P5HGR22 | φ 500*H500 | ≤300 | ≤ 3000 | 200 | 5.0*10 -3 | 2200 | ≤5 00 |
| P7VGR22 | φ 700*H900 | ≤420 | ≤ 6000 | 400 | 5 | 2200 | ≤70 0 |
| P7HGR22 | φ 700*H600 | ≤420 | ≤ 6000 | 200 | 5.0*10 -3 | 2200 | ≤70 0 |
Typical Applications
Related products
Review similar furnace options.
Hot Pressing
Vacuum Hot Pressing Furnace
Combines heating, vacuum, and mechanical pressure for high density materials and demanding thermal processes.
Hot Pressing
P2CO Vacuum Hot Pressing Furnace
The equipment integrates vacuum/atmosphere control, hot pressing, and high-temperature sintering into one system, and is suitable for the preparation of a wide range of high-performance materials. It can process ceramic materials such as niobium oxide, silicon carbide, boron carbide, and boron nitride, as well as graphene carbon fiber, and high-temperature alloy metal powders, enabling high-temperature pressure, sintering and densification.
Hot Pressing
P3V Vacuum Hot Pressing Furnace
This equipment integrates vacuum/atmosphere control, hot pressing, and high-temperature sintering, making it suitable for the preparation of various high-performance materials. It can process ceramic materials such as niobium oxide, silicon carbide, boron carbide, and boron nitride, as well as graphene carbon fibers and high-temperature alloy metal powders, achieving high-temperature pressure sintering and densification. It is widely used in the thermal forming of new materials such as powder metallurgy and functional ceramics. It can also perform heat treatment on powders or compacts at temperatures below the melting point of the main components, significantly enhancing material strength through inter-particle metallurgical bonding. This equipment features high process integration and can effectively meet the needs of complex sintering processes in new material research and development and production. It has important application value in many fields such as aerospace and electronic devices.
Gallery And Media
Review product images, equipment details, and available media before sending a technical inquiry.
Technical Downloads
Use these documents to prepare a technical proposal request with material, atmosphere, temperature, pressure, and chamber details.
Hot Pressing Furnace Inquiry Sheet
Configuration checklist for chamber size, load, atmosphere, tooling, and process expectations.
Request Technical Proposal
