Hot Pressing

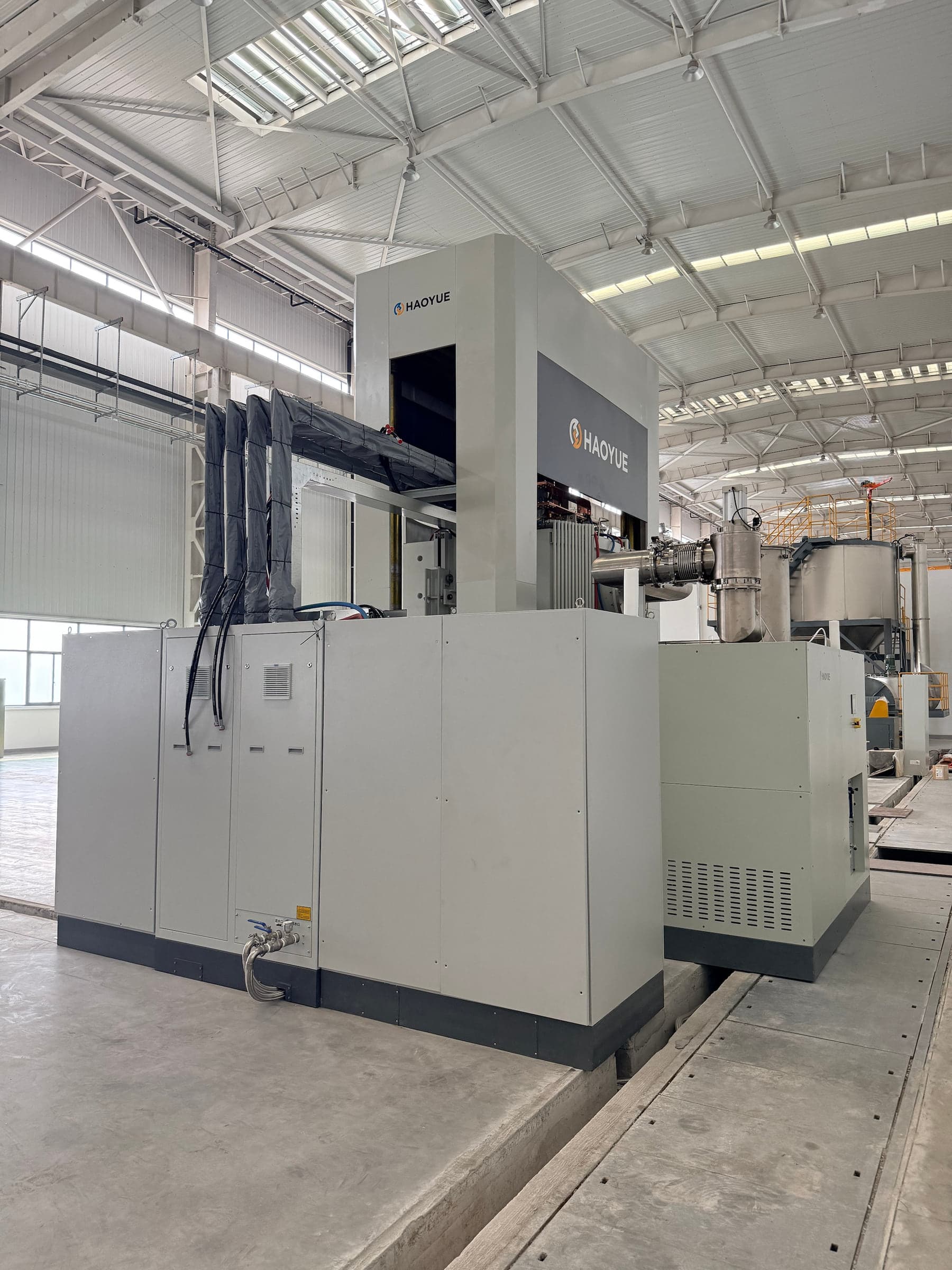

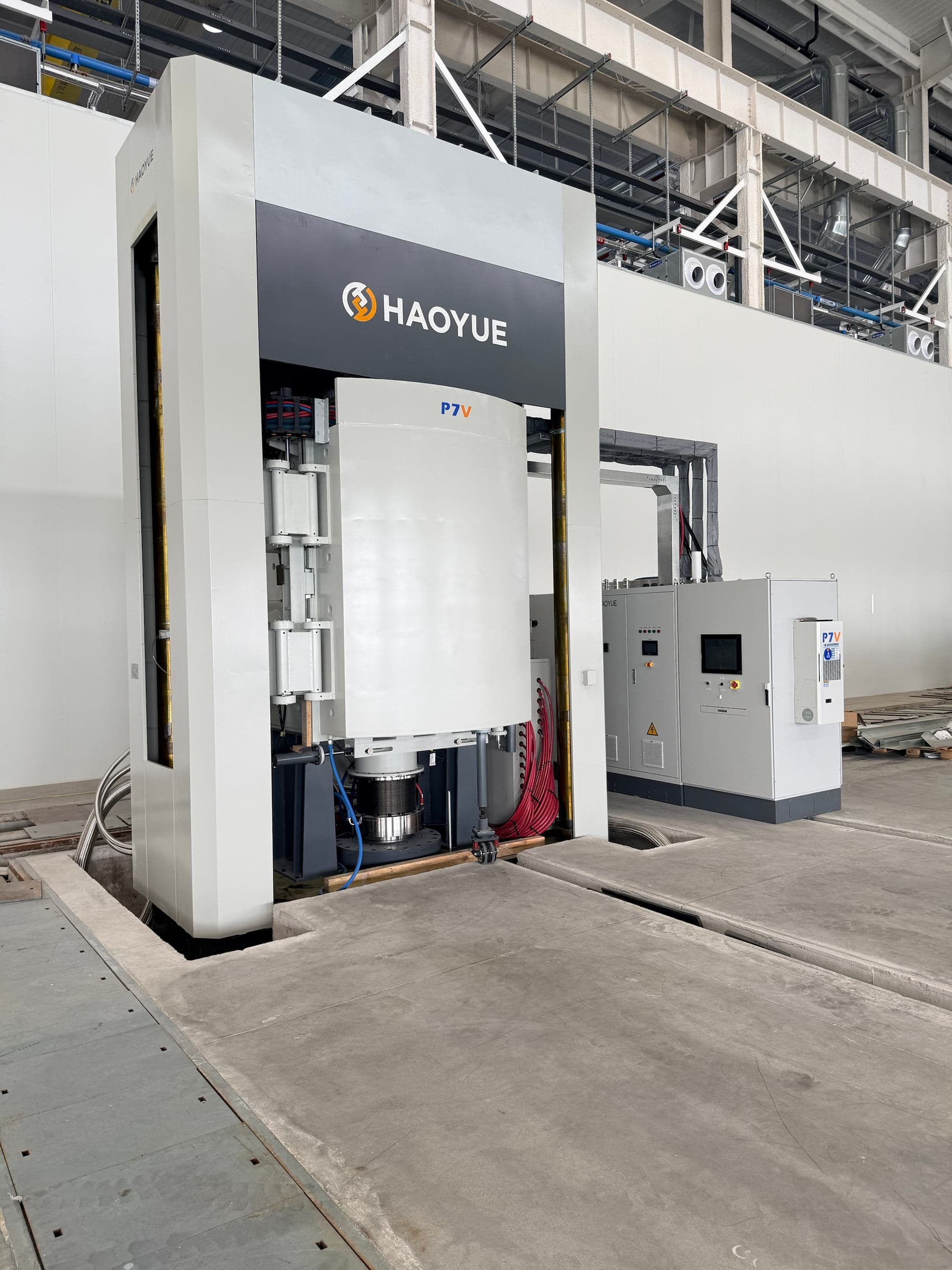

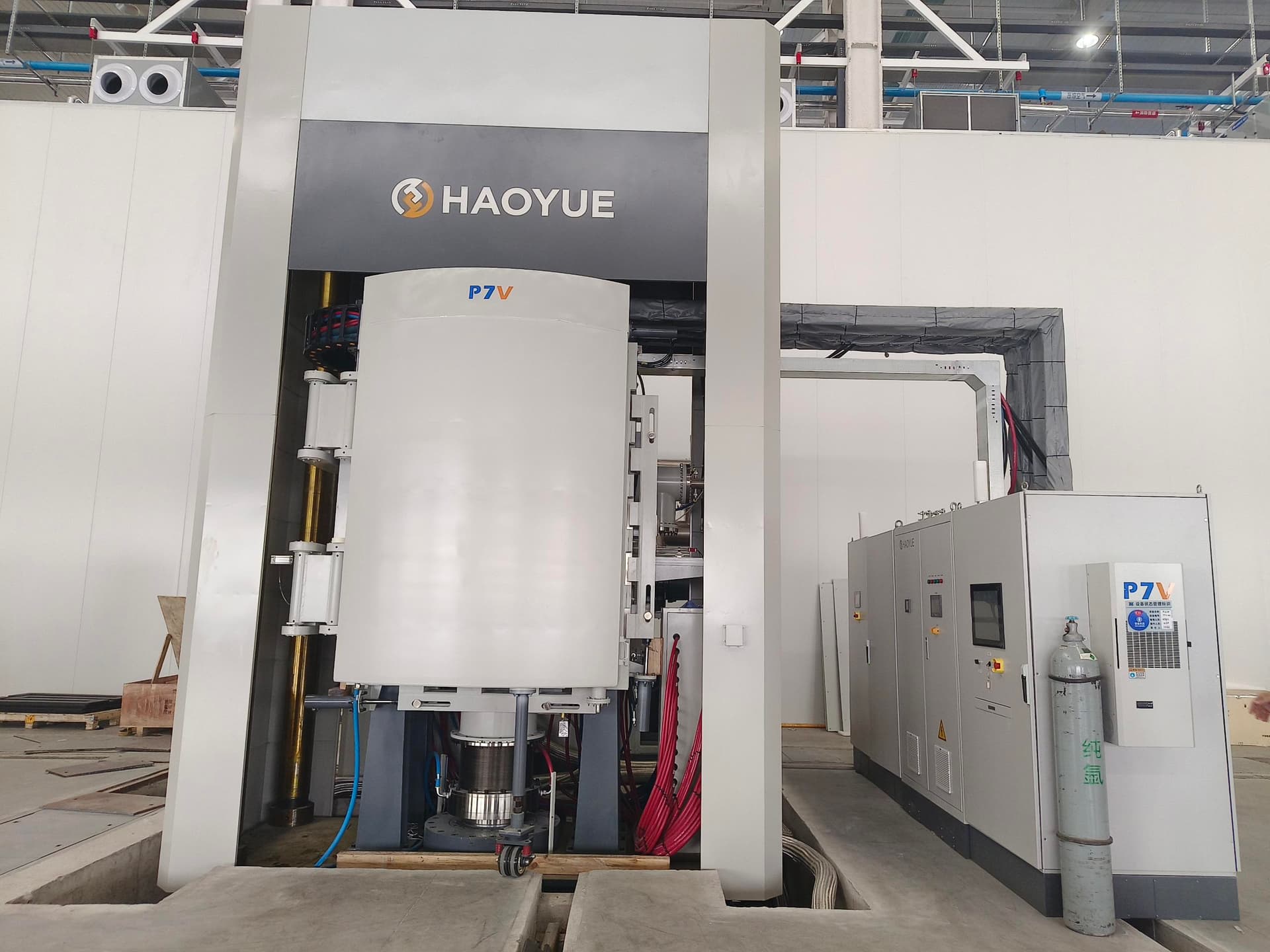

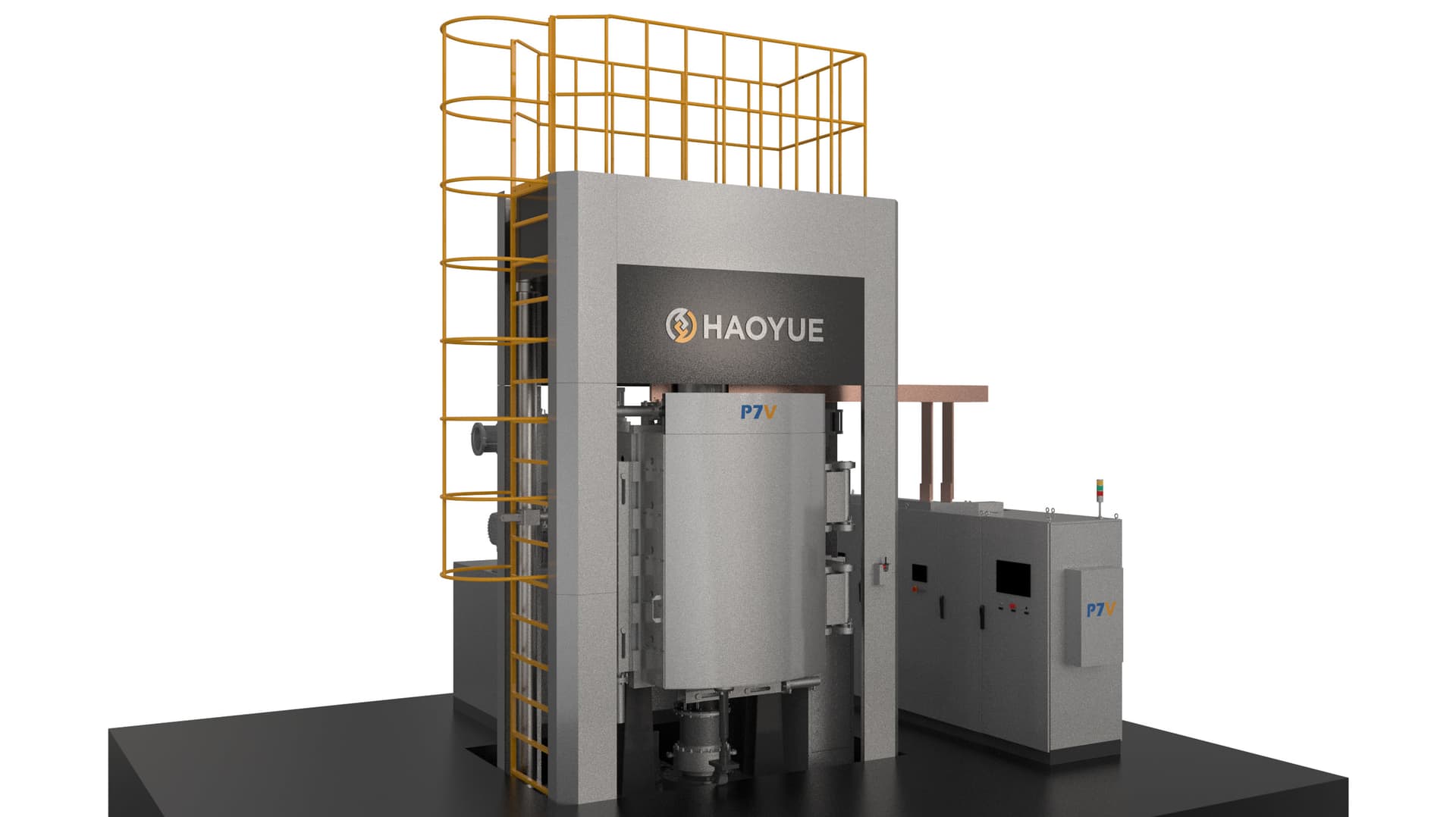

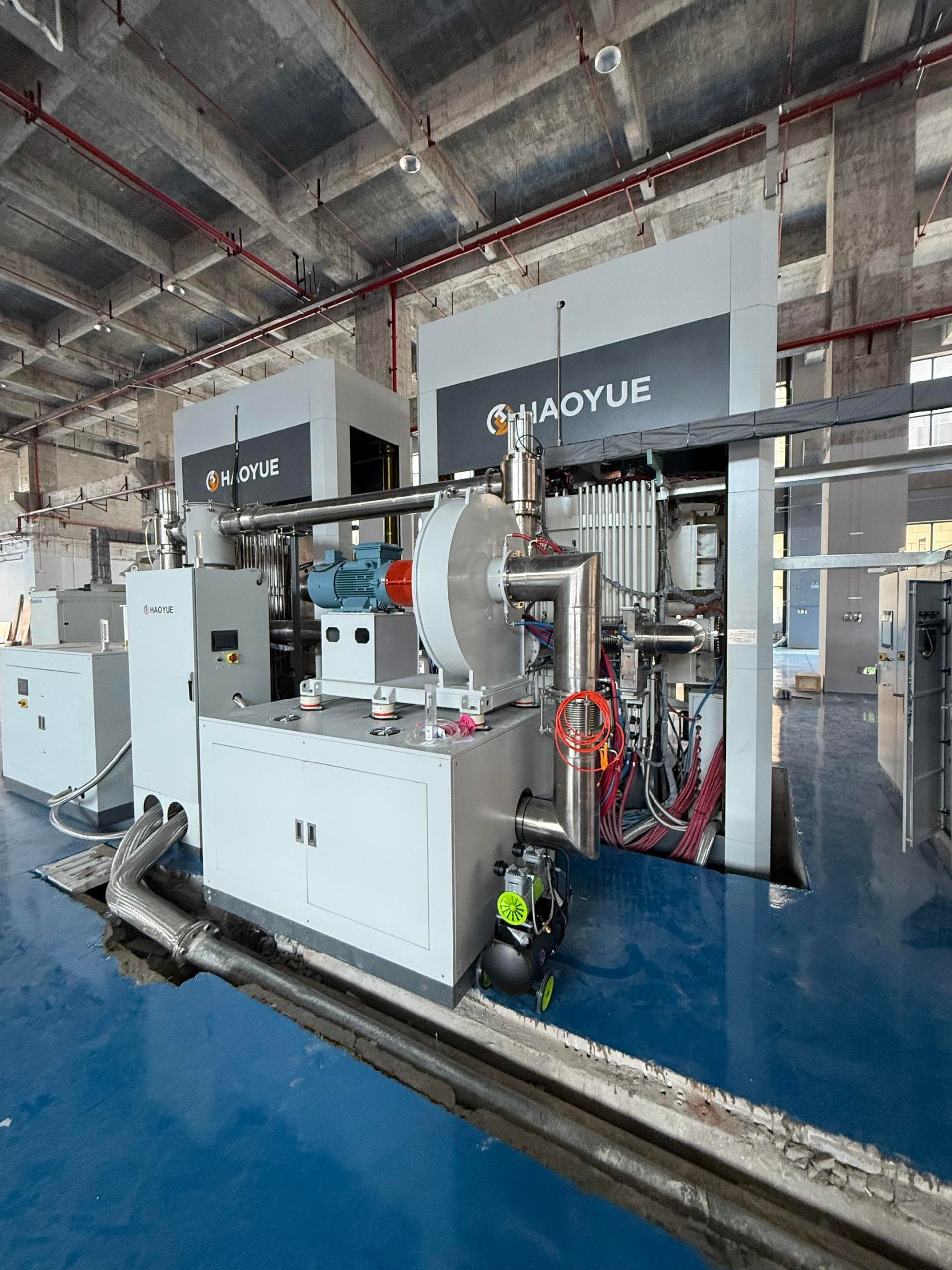

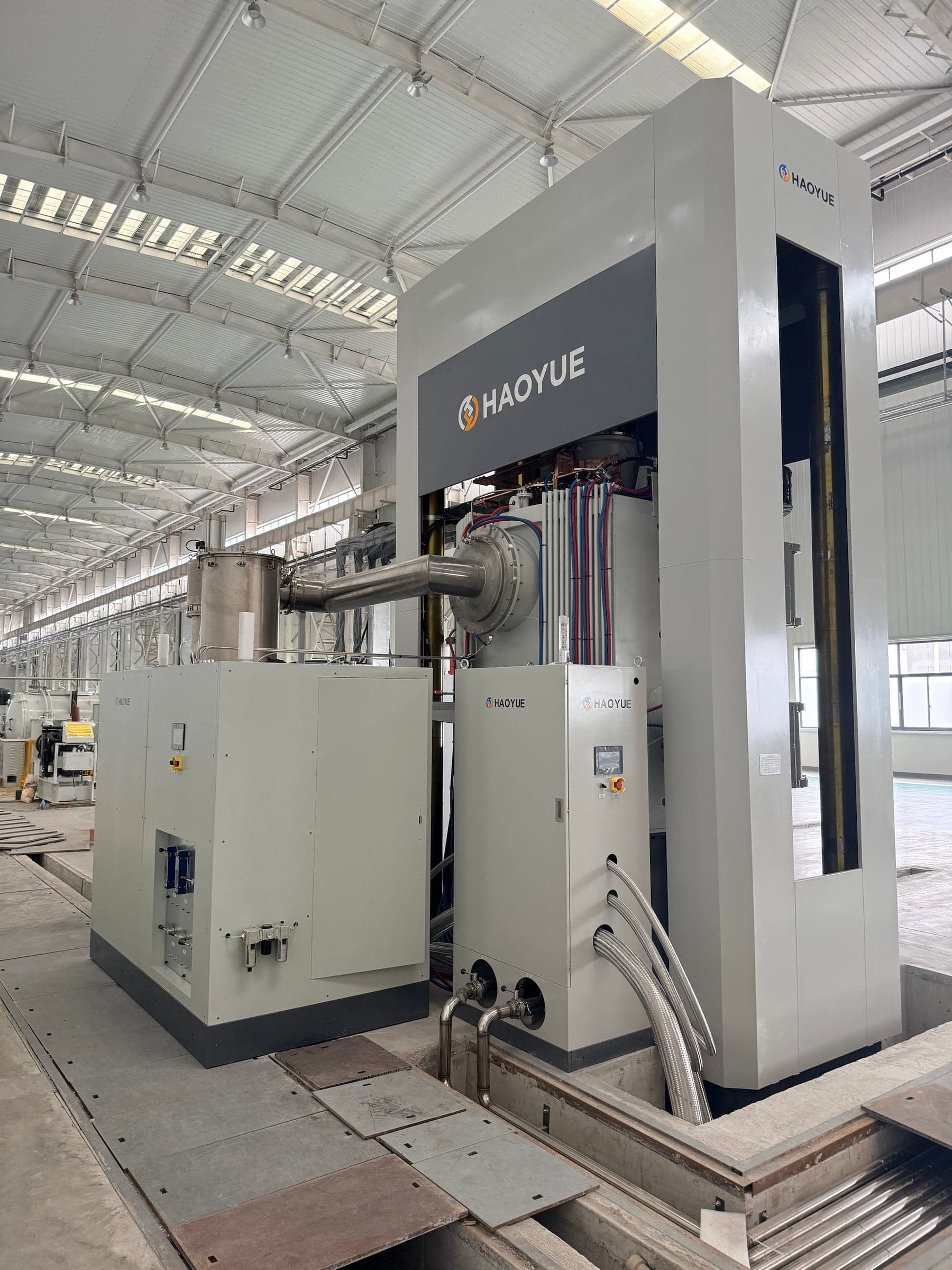

P7V series Vacuum Hot-pressing Furnace(Graphite)
Vacuum hot pressing furnace for pressure-assisted densification.
Adopting a vertical and upward opening structure: high precision for loading and unloading molds, easy to operate; Fast heating: heating rate of 20°C/minute (<1... Exact limits for temperature, atmosphere, pressure or load, and work-zone size are confirmed in technical review; Haoyue quotes from the agreed process window. Exact limits for temperature, atmosphere, pressure or load, and work-zone size are confirmed in technical review; Haoyue quotes from the agreed process window.
Key Features
Technical Highlights
Vacuum hot pressing combines heating, vacuum or protective atmosphere, and mechanical load.
Press capacity, ram arrangement, and tooling strategy follow part size and die constraints.
Hot-zone material and atmosphere package follow contamination limits and temperature needs.
Single-chamber and multi-chamber layouts can be compared when throughput matters.
Controls support recipe holds, load profiles, and project-specific data records.
Prepare material, geometry, temperature, load, atmosphere, and fixture inputs before quotation.
Process Flow
Hot Pressing Process Overview
Vacuum hot pressing combines heating and mechanical pressure in a single cycle to densify powder into a solid, high-density part.
Technical selection guide
Plan the process before comparing P7V series Vacuum Hot-pressing Furnace(Graphite) options.
Review die geometry, load path, temperature, atmosphere, and trial requirements before selecting a hot pressing furnace.
Lifecycle support
Plan support alongside the equipment configuration.
Prepare operating records, inspection inputs, planned downtime, and technical questions for a service review.
Selection guide
Confirm the process window before quotation.
For faster engineering review, prepare the core process boundaries before sending an inquiry.
Can the chamber be customized?
Yes. Chamber size, heating zone, fixture, pressure, and atmosphere configuration should be confirmed through technical review.
Is a process test recommended?
For new materials or demanding density targets, a sample process discussion helps reduce equipment selection risk.
What should be sent with an inquiry?
Material, target temperature, pressure or load, atmosphere, workpiece size, and expected capacity are the most useful inputs.
Typical Applications
