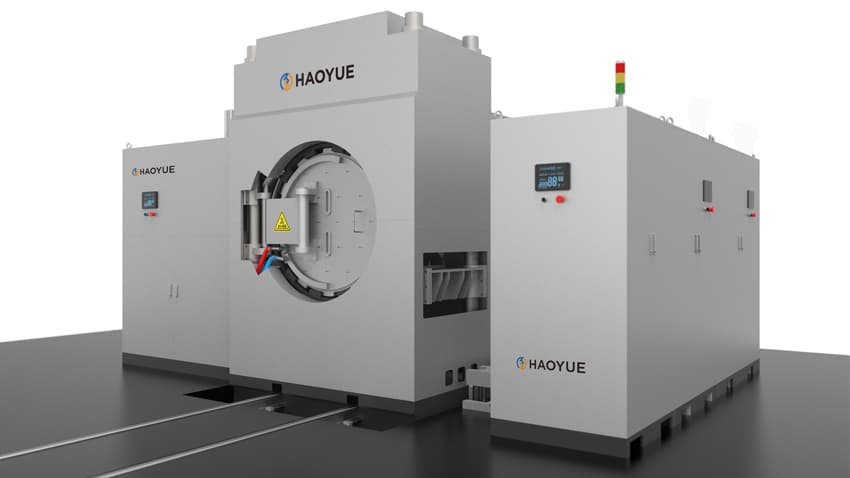

S-150 Industrial SPS Sintering System
S-150 industrial platform for 150 mm samples and production-scale process review.
The S-150 is an industrial spark plasma sintering configuration with a published 150 mm sample diameter and 1000 kN load. Review the complete temperature, tooling and atmosphere window before specifying a process.
Key Features
Technical Highlights
Add.: Building B2, 7301 Jiasong North Road, Jiading District, Shanghai
Copyright © Shanghai Haoyue Technology Co.,Ltd. All Rights Reserved
Process Flow
SPS Process Overview
Spark plasma sintering pairs pulsed DC current with uniaxial pressure to densify powders in minutes instead of hours.
Industrial SPS supplier review
Compare the complete SPS architecture, not one catalogue limit.
Use this equipment page for configuration and specification review. Use the linked buyer guide to define the material, tooling, current path, trial, scale-up, and acceptance brief before comparing manufacturers.
Power and current path
Confirm the power supply and control method, electrodes, punches, die, spacers, insulation, cooling, and utility limits for the proposed tooling stack.
Synchronized measurements
Require current, voltage, temperature, load, displacement, vacuum or gas state, and recipe steps on a trace that can be reviewed during factory acceptance.
Tooling and scale-up
Compare die diameter, sample count, current density, load path, temperature measurement, cooling time, tooling life, and repeatability assumptions.
Supplier scope
Define factory testing, documentation, training, spare parts, installation interfaces, open risks, and site acceptance responsibilities in writing.
Technical selection guide
Plan the process before comparing S-150 Industrial SPS Sintering System options.
Review conductive tooling, current path, pressure, temperature measurement, atmosphere, and scale-up data before selecting an SPS system.
Lifecycle support
Plan support alongside the equipment configuration.
Connect equipment configuration, operating sequence, data records, routine checks, and training questions.
Selection guide
Confirm the process window before quotation.
For faster engineering review, prepare the core process boundaries before sending an inquiry.
Can the chamber be customized?
Yes. Chamber size, heating zone, fixture, pressure, and atmosphere configuration should be confirmed through technical review.
Is a process test recommended?
For new materials or demanding density targets, a sample process discussion helps reduce equipment selection risk.
What should be sent with an inquiry?
Material, target temperature, pressure or load, atmosphere, workpiece size, and expected capacity are the most useful inputs.
Which certifications and delivery dates apply?
Share the destination country, required standards and installation date. Applicable declarations, certificates, acceptance scope and delivery schedule are confirmed for the quoted configuration; they are not universal catalogue guarantees.
Official Specification Tables
Imported from Haoyue's official product data and reorganized for clearer technical review.
| NO | Sample Diameter (mm) | Head stroke (mm) | Pressure(kN) | Vacuum(Pa) | Max. heating power [kW] | Voltage (V) | Current (A) | Operating Temperature(°C) |
|---|---|---|---|---|---|---|---|---|
| S-150 | Φ150 | 100 | 1000 | 1 | 300 | 10 | 30000 | 2200 |
| S-200 | Φ200 | 200 | 2000 | 1 | 400 | 10 | 40000 | 2200 |
| S-300 | Φ300 | 200 | 3000 | 1 | 450 | 10 | 50000 | 2200 |
| S-400 | Φ400 | 200 | 4000 | 1 | 600 | 10 | 60000 | 2200 |
Typical Applications
Related products
Review similar furnace options.
SPS
S series Continuous SPS Spark Plasma Sintering System
High Production Efficiency / High Automation Program / Good Temperature Uniformity / Fast Heating Speed / High Pressure Accuracy / Good Safety Performance The S... Exact limits for temperature, atmosphere, pressure or load, and work-zone size are confirmed in technical review; Haoyue quotes from the agreed process window. Exact limits for temperature, atmosphere, pressure or load, and work-zone size are confirmed in technical review; Haoyue quotes from the agreed process window.
SPS
S series SPS Laboratory Furnace
Fast Heating Rate / Short Sintering Time / Controllable Organizational Structure /Energy-saving and Environmental Protection The SPS (Spark Plasma Sintering) DC... Exact limits for temperature, atmosphere, pressure or load, and work-zone size are confirmed in technical review; Haoyue quotes from the agreed process window. Exact limits for temperature, atmosphere, pressure or load, and work-zone size are confirmed in technical review; Haoyue quotes from the agreed process window.
SPS
S1 SPS Sintering System
SPS (Spark Plasma Sintering) system is one of the most advanced sintering systems in the world. It is a new type of rapid sintering technology that achieves powder sintering and densification by applying pulsed current and axial pressure between two electrodes. It features fast heating rate, short sintering time, controllable micro structure, energy saving and environmental protection. It can be used to prepare metal materials, ceramic materials, composite materials, as well as nano bulk materials, amorphous bulk materials, functionally graded materials, etc. In addition, SPS equipment also enables the manufacturing of highly special new materials, such as nano materials, functionally graded materials, composite materials, tungsten carbide, silicon nitride, silicon carbide and other hard materials, structural ceramics and functional ceramics that can be sintered without significant grain growth.

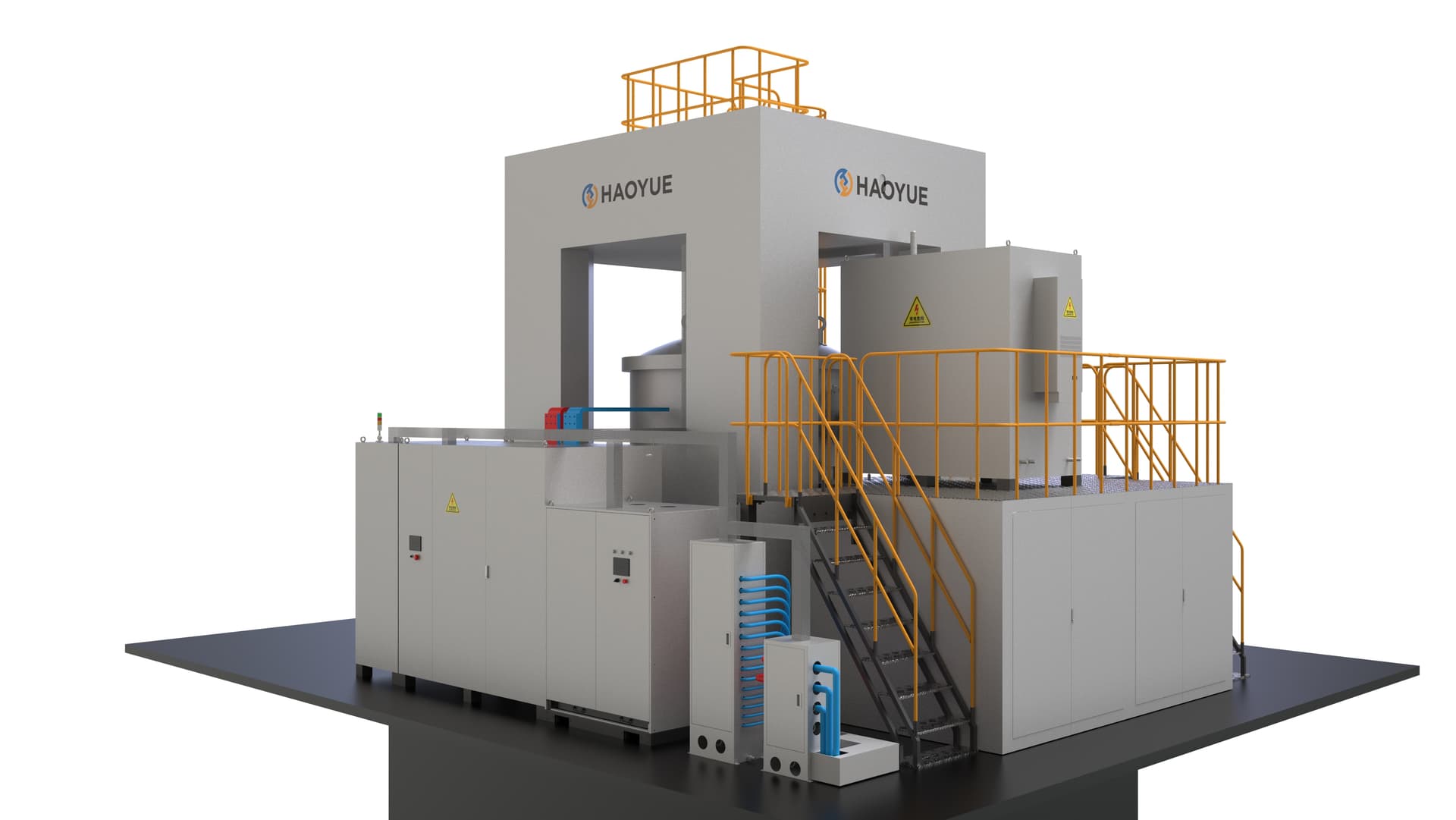

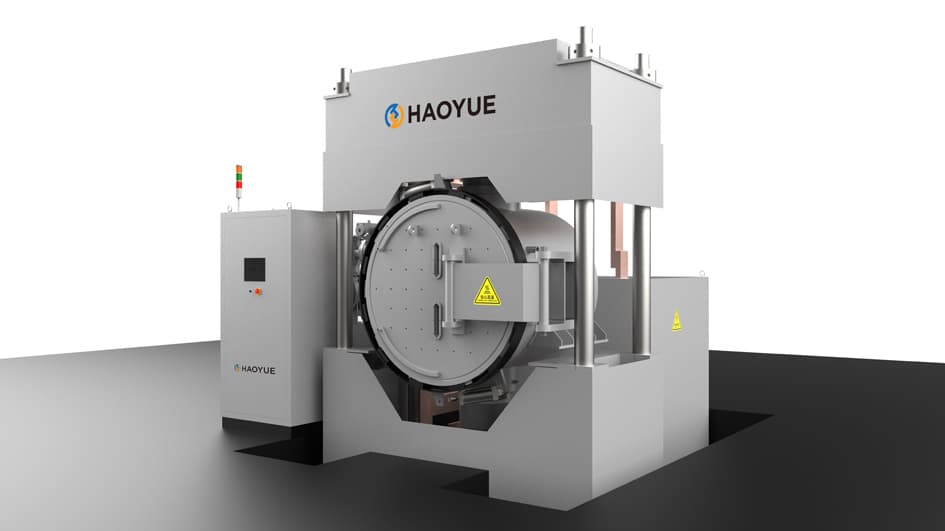

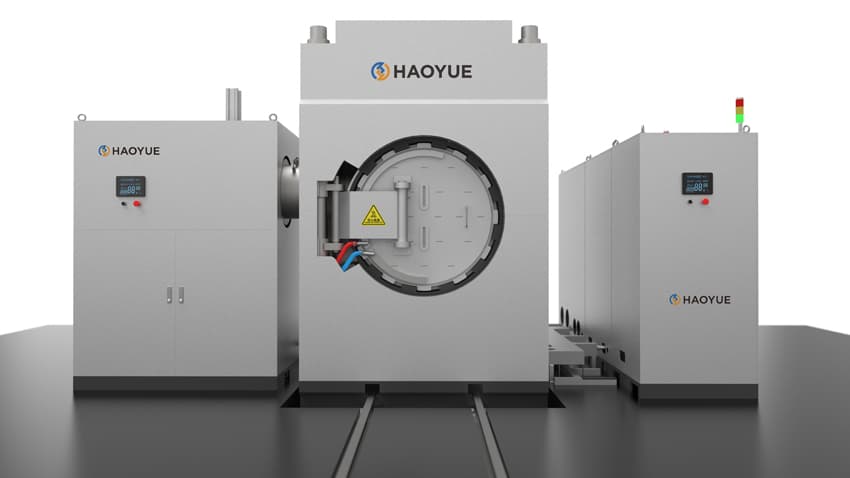

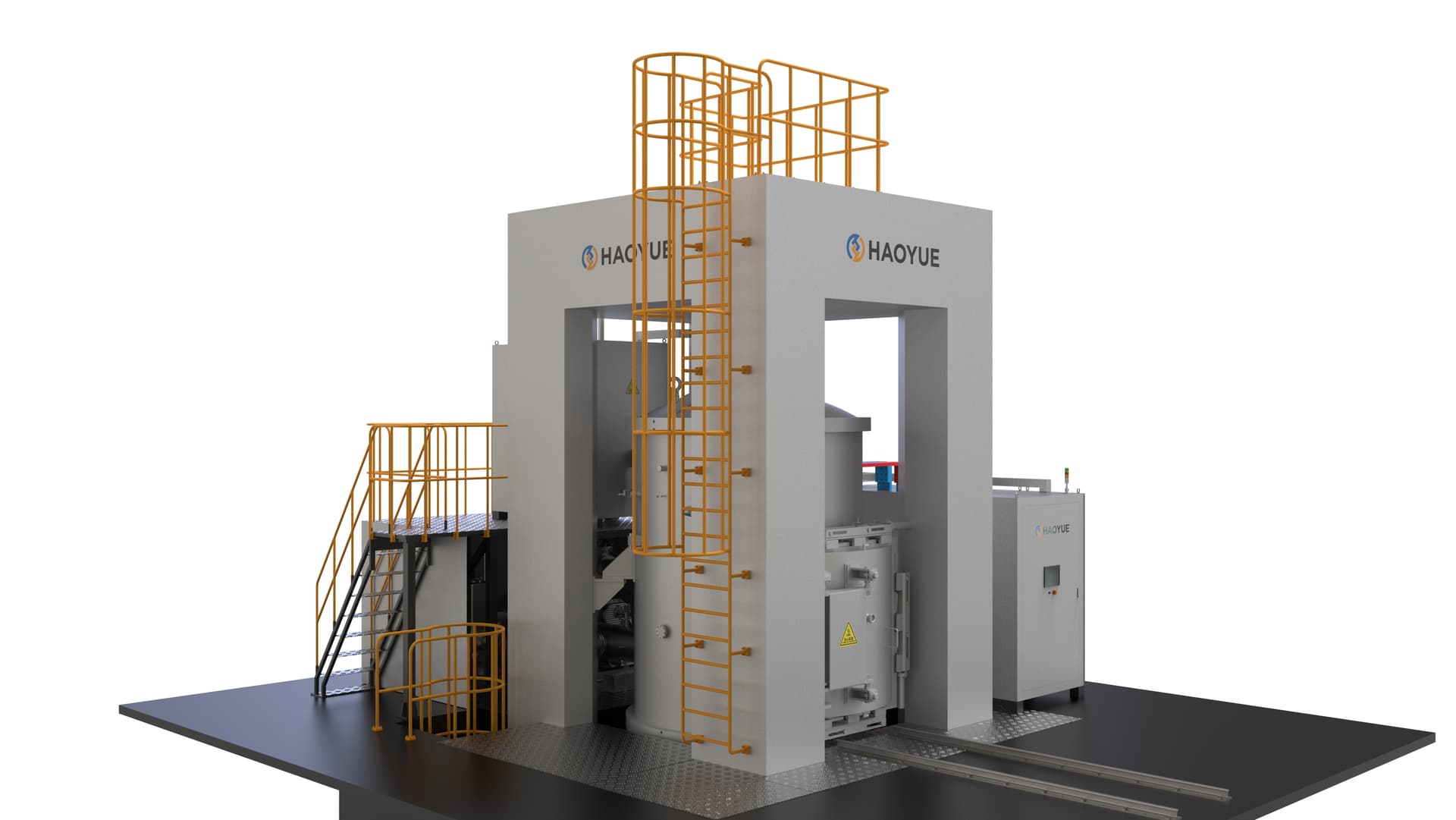

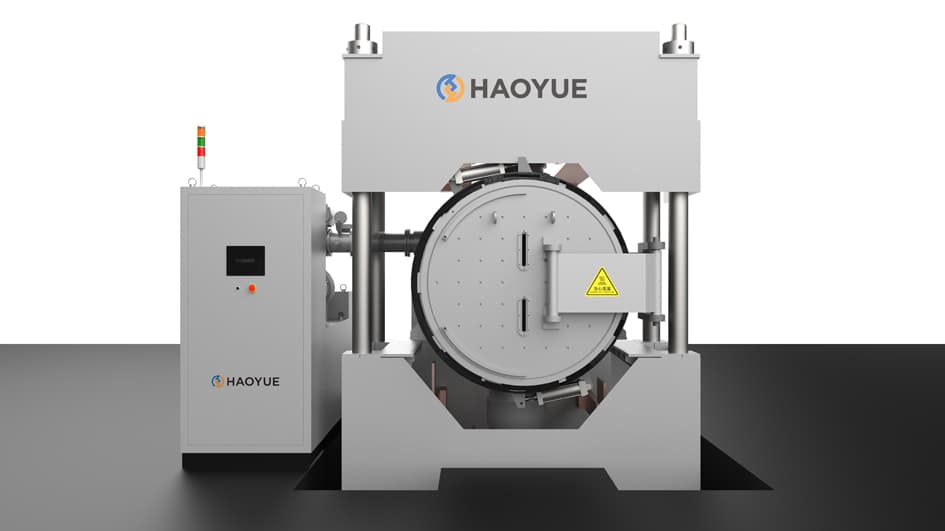

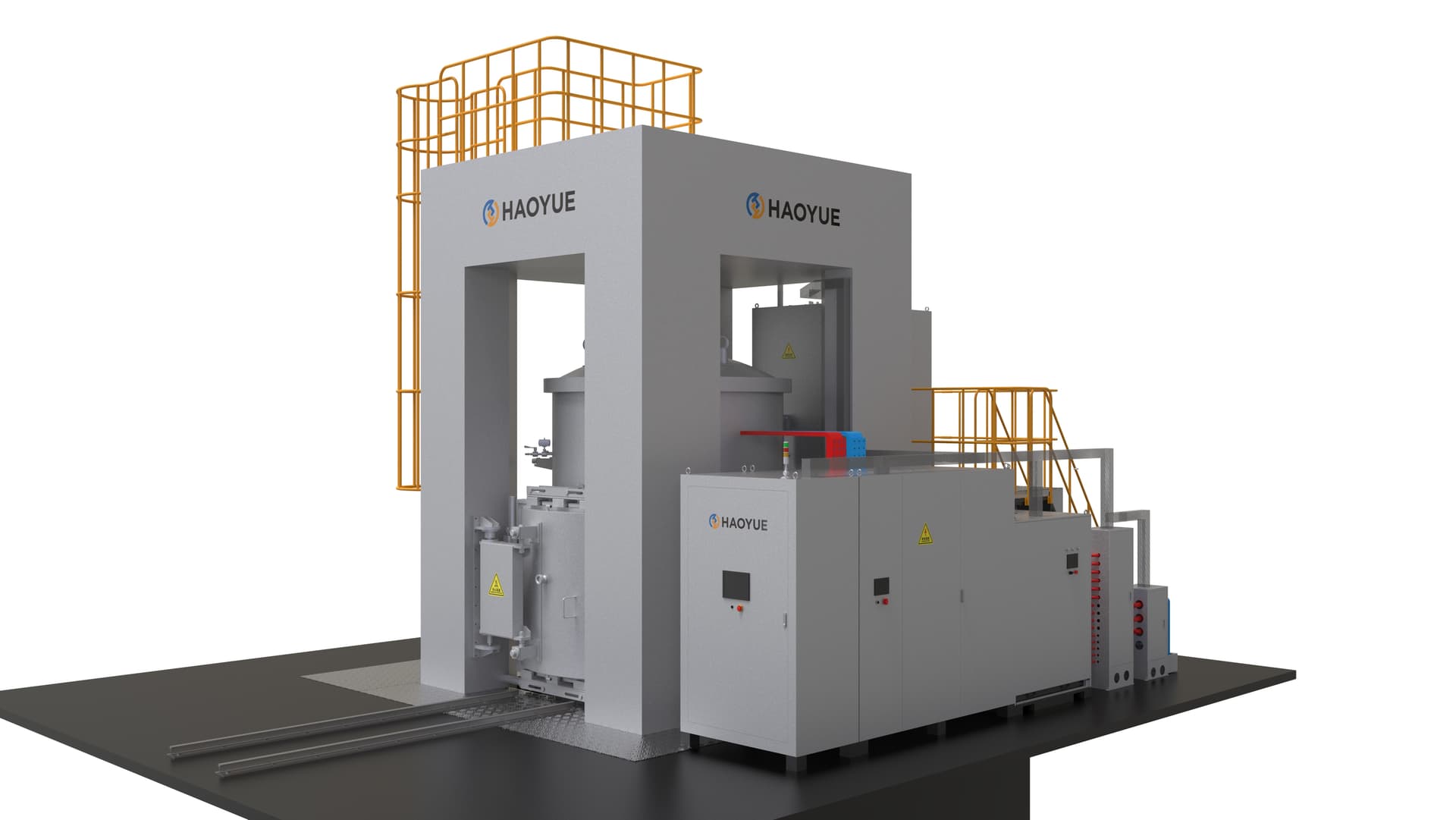

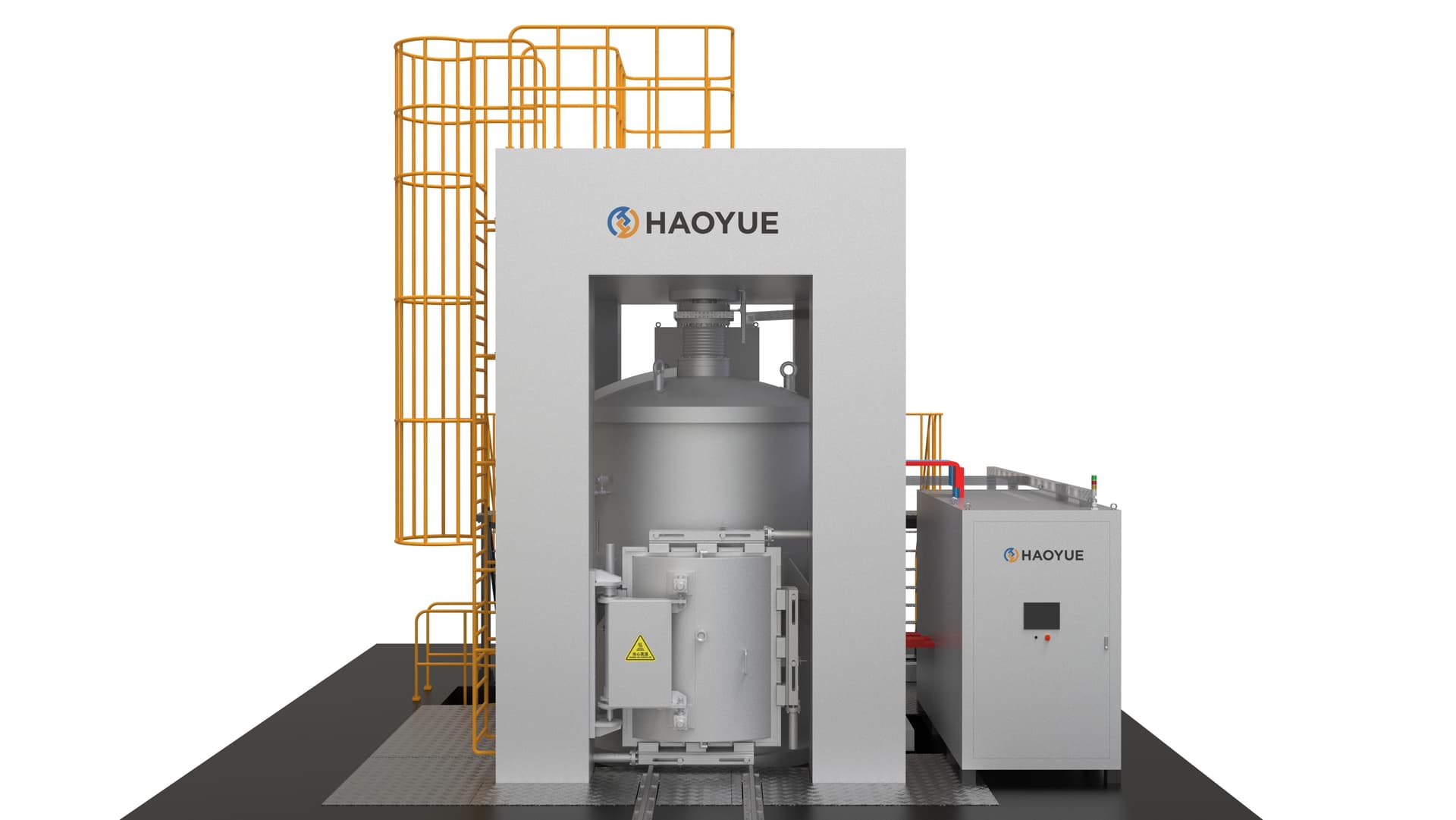

Gallery And Media
