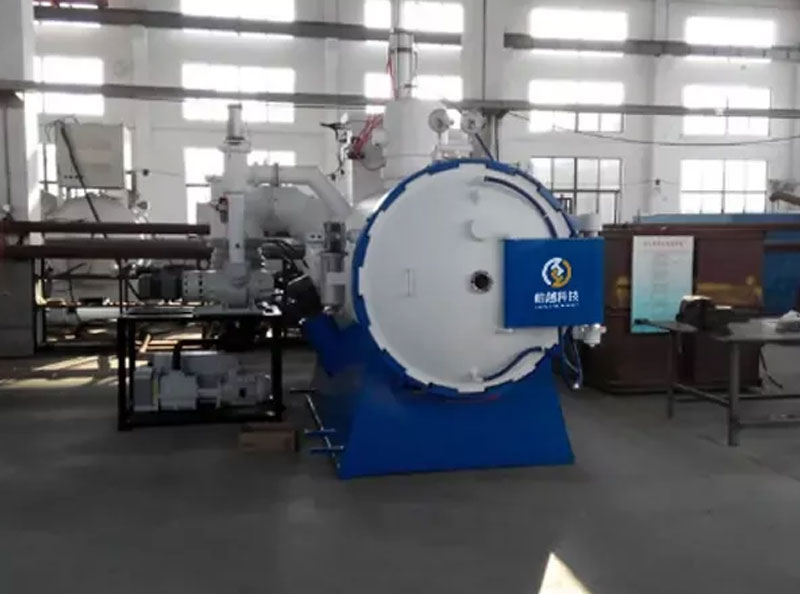

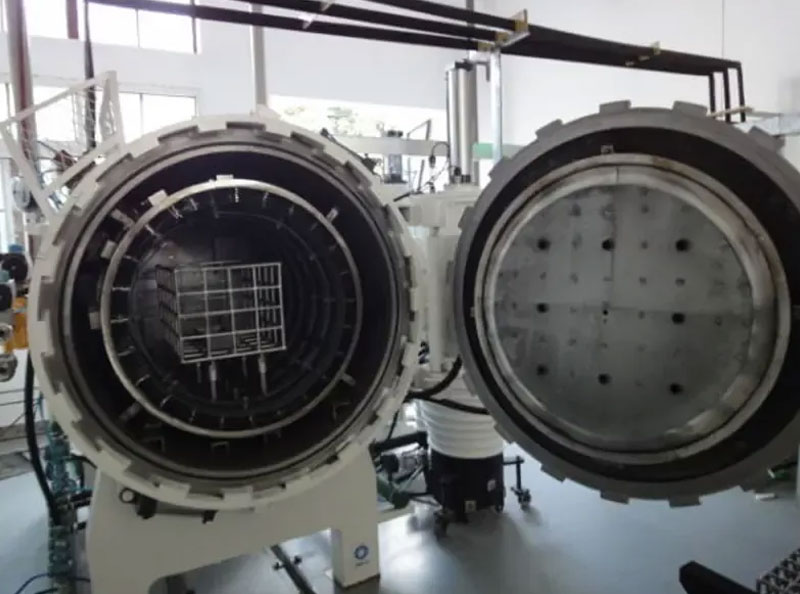

High Temperature Brazing Furnace

It is mainly suitable for vacuum brazing of stainless steel, superalloy, cemented carbide, nonferrous metals and other materials

Technical Data

Technical Features

  • Horizontal, single chamber structure design, square or circular heating chamber structure;

  • The maximum temperature can reach 2000 ℃;

  • Heating element with patented structure;

  • A temperature measuring thermocouple feeding device with patent structure;

  • The double layer sealing structure of temperature control thermocouple with patent structure.


Specifications

TypeHeating Zone size(mm)Capacity(kg)Heating ElmentHeating Power(KW)Max Temp(℃)Temp.Unifomity(±℃)Max.Vacuum(Pa)Pressure rise rate(Pa/h)
VHB-334300x300x400100Mo/Gr60130059x10-40.5
VHB-446400x400x60015080130059x10-40.5
VHB-557500x500x700280100130059x10-40.5
VHB-669600x600x900450150130059x10-40.5
VHB-8812800x800x1200800210130059x10-40.5
VHB-9918900x900x18001000450130059x10-40.5
VHB-10/10/151000x1000x15001200450130059x10-40.5
VHB-8830800x800x30002000500130059x10-40.5



Application

Widely used in the welding and other bright heat treatment of stainless steel, carbon steel, brass, copper, ceramics and other bright parts widely used in automobile, diesel engine, aviation, aerospace, air conditioning and refrigeration, gas water heater, electronics, microwave magnetron and other industries


Welcome to consult us for more details about High Temperature Brazing Furnace.

Main Ingredients

The products provided by Shanghai Haoyue Technology Co., Ltd. are advanced in technology, reliable in quality and complete in variety.Since its establishment, our company has been recognized by users in the market, and its product quality and service have been affirmed by users. Our advantages are not only reflected in the field of high-precision temperature control, but also our outstanding professionals in technology, vacuum, automatic control and computer temperature analysis system.
