How Does a Tubular Hydrogen Furnace Work?

May. 27, 24

Tubular hydrogen furnaces are integral components in various industrial processes, particularly those involving the production of hydrogen gas. These furnaces play a crucial role in facilitating chemical reactions and ensuring optimal conditions for hydrogen generation. In this article, we explore the workings of a tubular hydrogen furnace, shedding light on its key components and functionalities.


1. Introduction to Tubular Hydrogen Furnaces: Catalysts of Hydrogen Production


Tubular hydrogen furnaces are specialized units designed for the production of hydrogen gas through a process known as steam methane reforming (SMR). This method involves the reaction of methane (CH4) with steam (H2O) in the presence of a catalyst to produce hydrogen (H2) and carbon monoxide (CO). The tubular design of these furnaces allows for efficient heat transfer and optimal conditions for the reforming reactions.

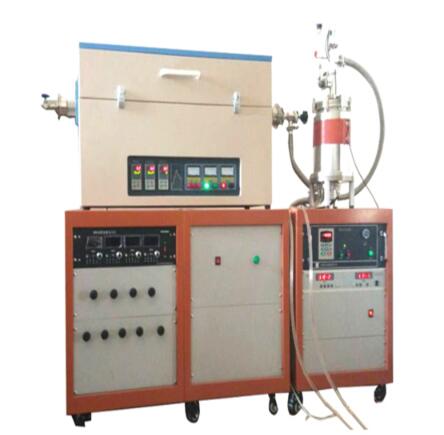

Tubular hydrogen furnace


2. Preheating and Mixing: Setting the Stage for Reaction


The process begins with the preheating of the reactants—methane and steam. These components are introduced into the tubular hydrogen furnace and are carefully preheated to the required temperature. The preheated methane and steam are then mixed in precise proportions to create the ideal conditions for the reforming reaction to take place.


3. Catalytic Reaction: Reforming Methane into Hydrogen


The heart of the tubular hydrogen furnace is the catalytic reaction chamber. In this chamber, the preheated mixture of methane and steam encounters a catalyst, typically composed of nickel. The catalyst facilitates the reforming reaction, breaking down the methane molecules and transforming them into hydrogen and carbon monoxide. This endothermic reaction requires a substantial amount of heat, which is supplied by the preheated reactants.


4. Heat Recovery: Maximizing Efficiency


To ensure the overall efficiency of the process, tubular hydrogen furnaces incorporate heat recovery systems. These systems capture and utilize the excess heat generated during the reforming reaction. The recovered heat is often used to preheat incoming feedstocks or for other purposes within the industrial facility, contributing to energy efficiency and reducing overall operational costs.


5. Gas Cooling and Separation: Extracting Hydrogen


Following the catalytic reaction, the resulting gas mixture, which includes hydrogen and carbon monoxide, undergoes a cooling process. This cooling step is crucial for separating the hydrogen from other byproducts. Various methods, such as condensation or other separation techniques, are employed to isolate and extract the hydrogen gas from the mixture.


6. Purification: Ensuring High-Quality Hydrogen


The extracted hydrogen undergoes a purification process to remove any remaining impurities or byproducts. Purification typically involves additional chemical reactions or the use of purification technologies such as pressure swing adsorption (PSA) or membrane separation. This step is essential to produce high-purity hydrogen suitable for various industrial applications.


Conclusion: Driving Hydrogen Production Forward


In conclusion, the operation of a tubular hydrogen furnace is a sophisticated process that leverages catalytic reactions and heat recovery systems to produce hydrogen efficiently. From preheating and mixing to the catalytic reaction and heat recovery, each stage is carefully orchestrated to optimize the production of high-quality hydrogen.


Understanding how tubular hydrogen furnaces work is crucial for industries relying on hydrogen gas for various applications, including energy production, chemical processes, and transportation. For any inquiries about tubular hydrogen furnaces or to explore options with a reliable supplier, feel free to contact us. Our team is dedicated to providing expert guidance and high-quality equipment to support your hydrogen production needs.
