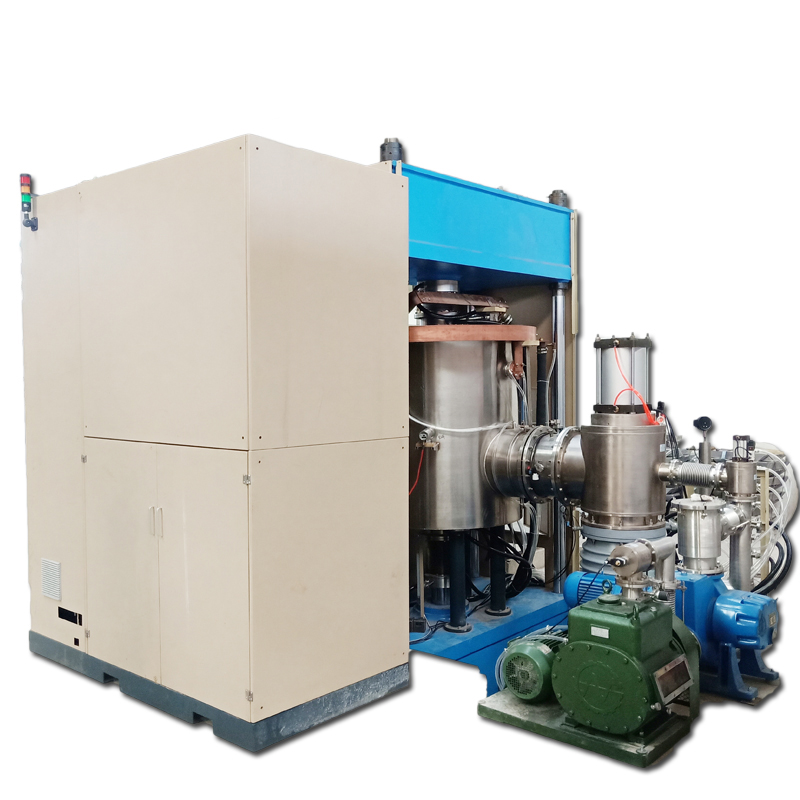

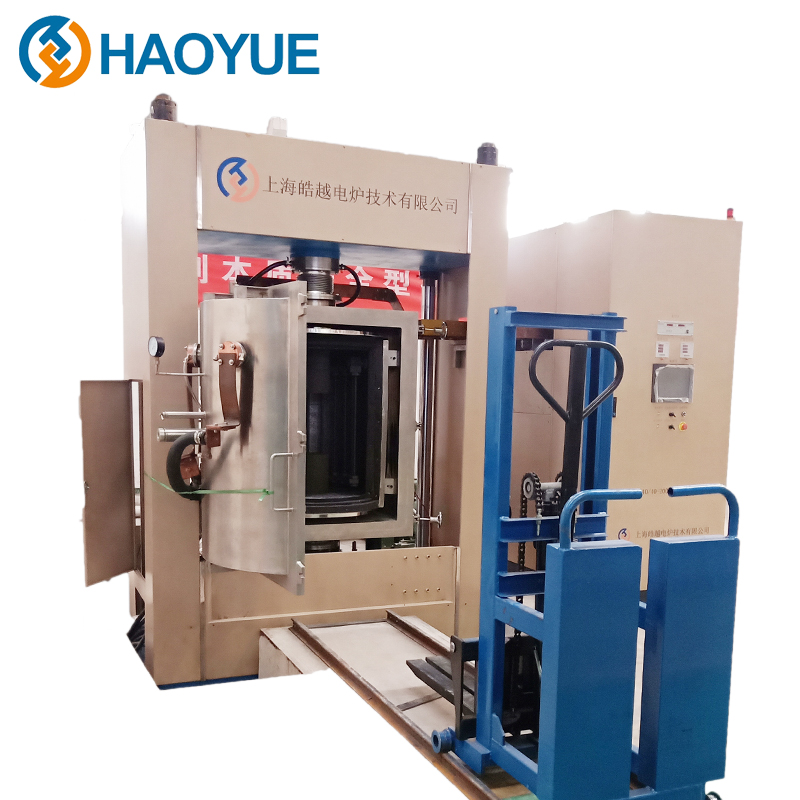

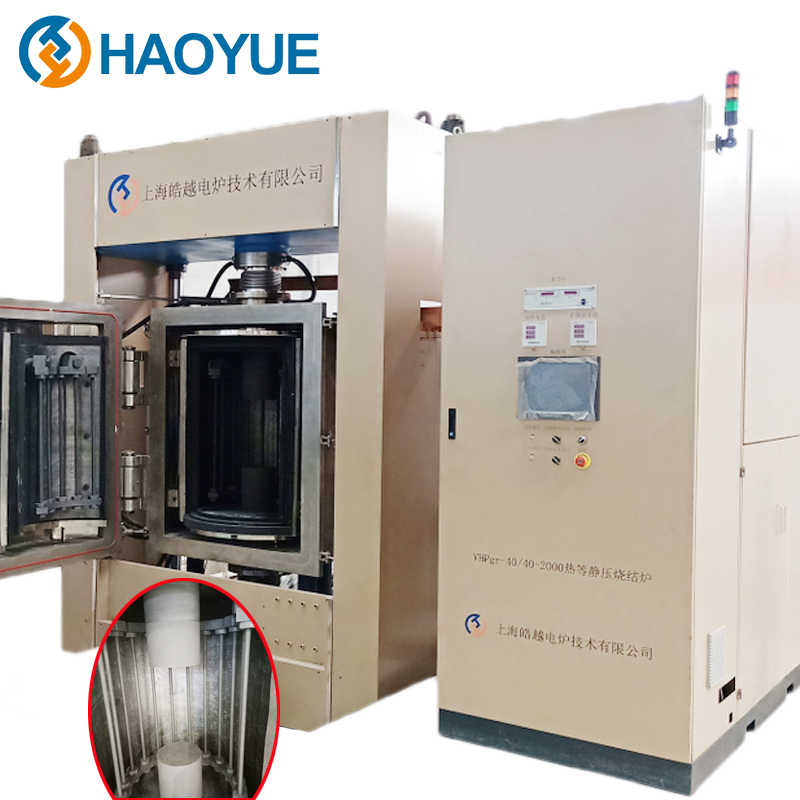

Hot Sale P4 Vacuum Hot-Pressing Sintering Furnace
Vacuum Hot-Pressing Sintering Furnace combines vacuum/atmosphere, hot press forming and high temperature sintering, suitable for high temperature thermoforming of new materials such as powder metallurgy and functional ceramics, such as applied to the transparent ceramics, industrial ceramics, and alloys composed of refractory metals. Vacuum sintering of materials and high temperature sintering of ceramic materials such as silicon carbide and silicon nitride, can also be used for heat treatment of powders or compacts at temperatures below the melting point of the main components, with the aim of increasing the strength by metallurgical bonding between the particles.
Technical Data
1 Maximum Heating Temperature: 2000℃
2 Horizontal design with front-open chamber ensures easy loading and removal of mold.
3 Vacuum (10^-3 Pa range) and Inert gas (Ar, He, N2) operation.
4 Fully automatic operation by PLC and touchscreen HMI.
5 Simultaneous temperature and pressure control.
6 Temperature control system based on thermocouple and infrared thermometer.
7 Water flow and furnace over-temperature system protection
Specifications
| P4 Vacuum Hot-Pressing Sintering Furnace | |
| Model | VHPgr-40/40-2000(P4) |
| Equipment Form | Horizontal |
| Loading method | Horizontal side loading |
| Heating Element | Graphite |
| Max.Temperature | 2000℃ |
| Working Temperature | 1900℃ |
| Max.Power | 180KW |
| Temperature Accuracy | ±1℃ |
| Max.Pressure | 1960KN（200Ton） |
| Maximum Outside Diameter of Mold | φ400x400mm（D*H） |
| Product Diameter | ≤φ200mm |
| Diameter of metal head | φ200mm |
| Max Displacement | 300mm |
| Pressing Direction | Single way pressurization ( bottom ) |
| Ultimate Vacuum | 5Pa/8.0x10-3Pa（8.0×10-2 torr/8.0×10-5 torr）Optional |
| Pressure Rise Rate | ≤2.0Pa/h |
| Gases | Nitrogen,Argon |
| Thermocouple | W-Re5/26(C-type) |
| Cooling Water Requirement | Water pressure: 0.2~0.3MPa, water flow: 20M3/ h |
| Power Requirement | Three-phase / 380V; VHPgr-40/40-2000(P4)Total power: 240KVA (including vacuum furnace power, vacuum generator power, cooling water power, etc.); |
Application
Transparent Ceramics, Industrial Ceramics
Transparent Ceramics, Industrial Ceramics
Refractory Metal
Cemented Carbide
Diffusion bonding of metals or other materials
