What Are the Characteristics of the Gas Oven?

Atmosphere furnace is in a given temperature, to the furnace into the composition of the artificially prepared atmosphere to achieve the purpose of a certain heat treatment, such as gas carburization, carbonitriding and bright quenching, annealing, normalizing, etc.. In order to control the atmosphere inside the furnace and maintain the pressure inside the furnace, the working space inside the furnace should always be isolated from the outside air to avoid air leakage and air inhalation as much as possible. Mass production, more than the composition of a large joint heat treatment or dual-use units, thus requiring a high degree of mechanization, automation.

Sintering furnace and atmosphere furnace manufacturer HAOYUE to share with you the use of atmosphere furnace.

Atmosphere furnace features

1. Novel appearance, lathe processing, high-temperature spraying of the shell. The energy-saving effect of the furnace material is more than 60% of the old electric furnace.

2.


2. High precision, possessing heat preservation performance. It adopts microcomputer control, programmable, automatic temperature rise/fall.

3. Anti-interference, the shell temperature ≤ 30 ℃ at 1400 ℃ greatly reduces the impact of the working environment.

4. Heating elements are distributed on both sides of the furnace chamber. Can add a variety of gases and vacuum, the furnace top and door water cooling. Electric furnace normal use temperature range up to 0-1700 ℃.

5. The electric furnace temperature control system adopts artificial intelligence adjustment technology, with PID adjustment, fuzzy control, self-tuning ability and can prepare various temperature rise programs and other functions.

6. It can pass hydrogen, argon, nitrogen and other gases, and can be pre-vacuum, the true atmosphere pressure can reach 0.1Mpa, the furnace body is made of thick steel processing, reliable.

Note the following

1, The liquefied gas used in the controlled atmosphere furnace is stored in the cylinder in a compressed liquid state, and the ambient temperature of the cylinder is not allowed to exceed 45℃. Use to ensure the gas tightness of the liquefied gas pipeline to prevent fire and frostbite accidents.

2, Since the content of carbon monoxide in heat-absorbing gas without oxidation heating is high, special attention should be paid to ensure good ventilation in the room when using, and the sealing of pipelines should be checked frequently.

3, When the furnace temperature is lower than 760 ℃ or combustible gas and air to reach the mixing ratio, there is the possibility of explosion, so in the start and stop furnace should pay more attention to the operation, a reliable way is to ventilate and stop before the furnace with inert gas and non-combustible gas nitrogen or carbon dioxide blowing furnace chamber and furnace chamber.

4, The core position to determine the accuracy of the reaction box vertical lifting, moderate height, placed square, between the two rows of boxes to maintain equal distance, fixed to ensure the width of the core size is correct. Reaction box corners and end wall gaps, filled with paper.

5, After each release of a furnace material, the hopper closers should be closed tightly. After the furnace material is loaded, the spent material or graphite spilled on the end wall ties should be cleaned up, the winch trolley should be parked in position, press up the top shaft, cover it with a cover, and fill in the process card with the loaded furnace number and the abnormal situation of the loaded furnace, and transmit the trolley group with the furnace.

6, People lifting reaction box, should be positioned correctly, vertical lifting. Must wait for the box body all dialed out, can start the car lifting away. Forbid the vacuum atmosphere furnace in the operation of the furnace crane reaction box. Put the reaction box, placed in order. Furnace loaders should remove the four chain hooks placed within the box, so as not to hook up the outer edge of the box to move the position or the box touches the operator.

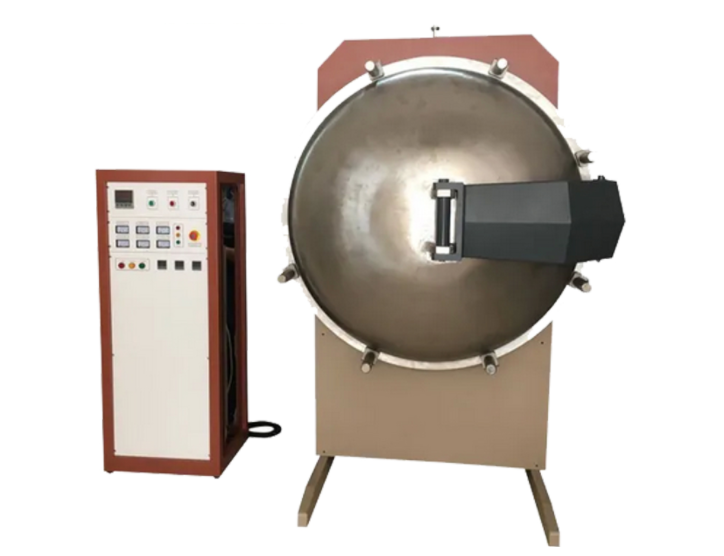

Our atmosphere furnace is heated by molybdenum rods, designed for sintering and heat treatment of materials in inert and oxidizing atmospheres, and is suitable for various heat treatments of special ceramics, electronic ceramics, structural ceramics, and functional ceramics.

HAOYUE has a large modern standard plant, complete sets of processing equipment and perfect quality inspection system. We have gathered a group of technical elites who have been engaged in heat treatment furnace, vacuum furnace, special furnace manufacturing and service for a long time. If you need to buy, please contact us.
